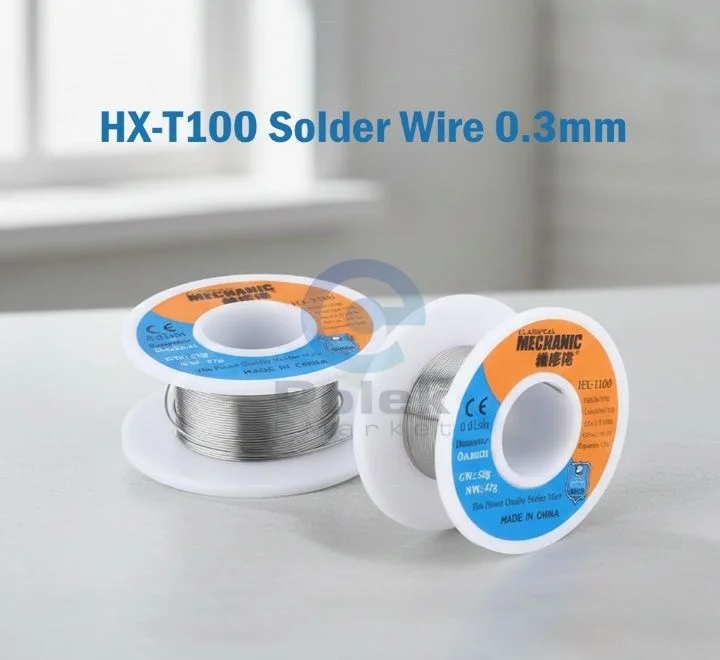

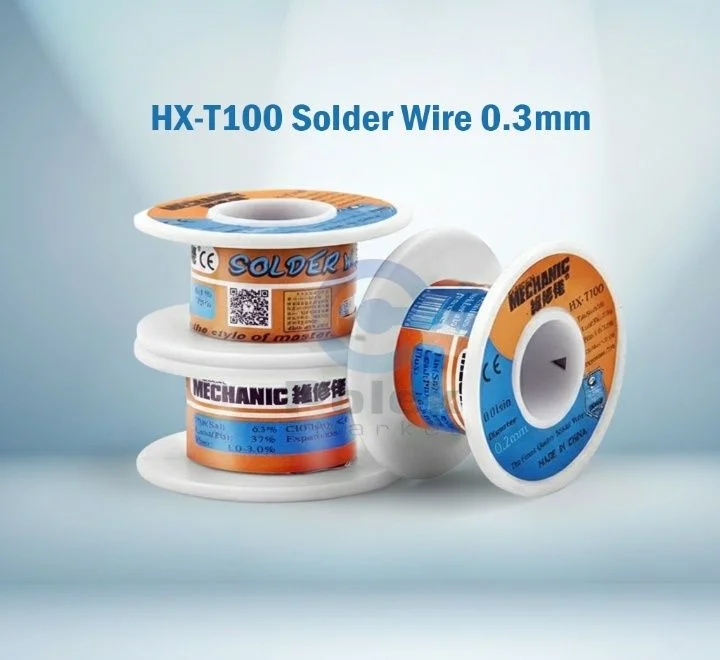

MECHANIC HX-T100 0.3mm Solder Wire
The MECHANIC HX-T100 0.3mm Solder Wire is a precision-grade rosin-core solder designed for fine-pitch electronics work, micro-soldering, and PCB repair. Built with a near-eutectic Sn63/Pb37 alloy, it has a low melting point of 183°C, delivering fast wetting, smooth flow and strong, reliable solder joints. Its ultra-thin 0.3mm diameter makes it especially suitable for detailed soldering tasks such as mobile phone motherboard repair, micro-component soldering, and delicate SMD work.
|
Specification
|
Details
|
|
|
|
|
Brand
|
MECHANIC
|
|
Model
|
HX-T100
|
|
Alloy Composition
|
Sn63% / Pb37% (eutectic)
|
|
Melting Point
|
~183°C (eutectic)
|
|
Core Type
|
Rosin core flux
|
|
Flux Content
|
Approx. 1.0–3.0%
|
|
Diameter
|
0.3mm (ultra-fine for precision)
|
|
Weight
|
Typically ~55g spool (net ~42?g)
|
|
Flux Type
|
Rosin (activated)
|
|
Applications
|
Fine-pitch SMD, micro-soldering, PCB repair, mobile phone and electronics work
|
|
Residue/Finish
|
Low-residue, easily cleaned if necessary
|
