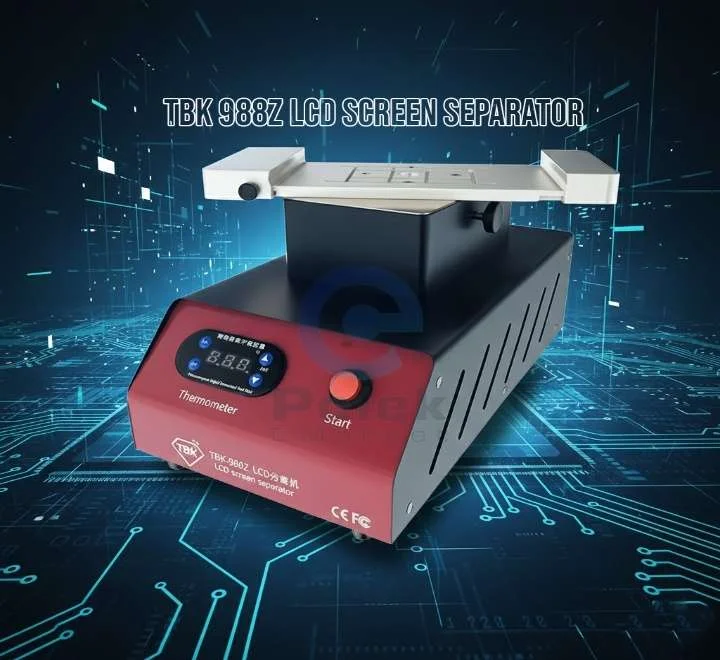

TBK 988Z

TBK 988Z is a multi-function vacuum LCD screen separator machine used for mobile phone repair, specifically for separating screens (both flat and curved) and removing glue.

Key Features and Specifications

·         Functionality: Designed for separating the glass lens from the LCD/OLED screen assembly and removing adhesive/glue from mobile phone frames.

·         Screen Compatibility: Works with screens up to 7 inches in size.

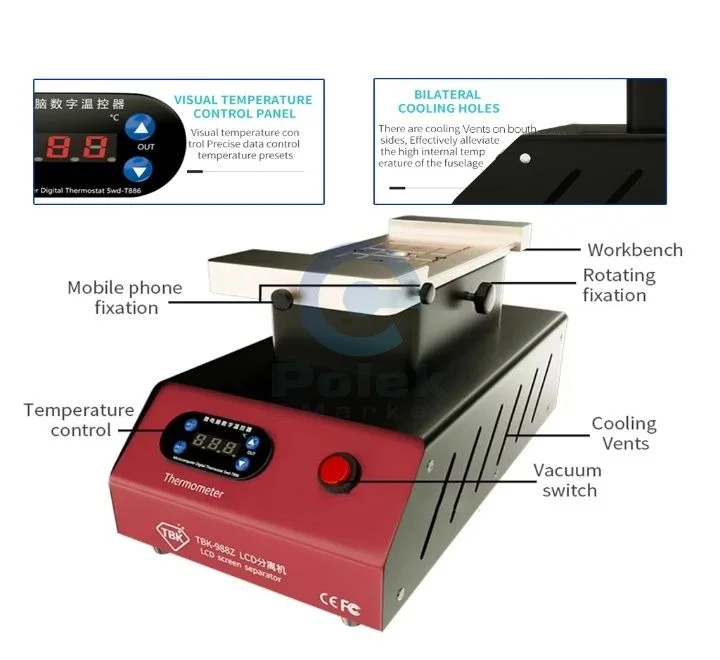

·         Built-in Vacuum Pump: Features a built-in double vacuum pump that provides strong suction to securely hold the device in place during the repair process.

·         Rotating Heating Platform: The heating worktop can rotate 360 degrees, allowing technicians to work from different angles for optimal ergonomic flexibility and precision.

·         Temperature Control: Offers visual and precise temperature control, with a maximum temperature reaching around 350°C.

·         Design: A compact and cost-effective workhorse designed for use in small repair shops.

·         Power: Operates on AC 110V/220V power (depending on the variant) with a power rating typically around 250W or 400W.

·         Dimensions: Machine dimensions are approximately 24 cm x 13.5 cm x 15 cm, with a net weight of around 2.6 kg.

This tool is part of the essential equipment for disassembling and repairing modern smartphones, particularly for delicate curved screens.
