Quick 706W+

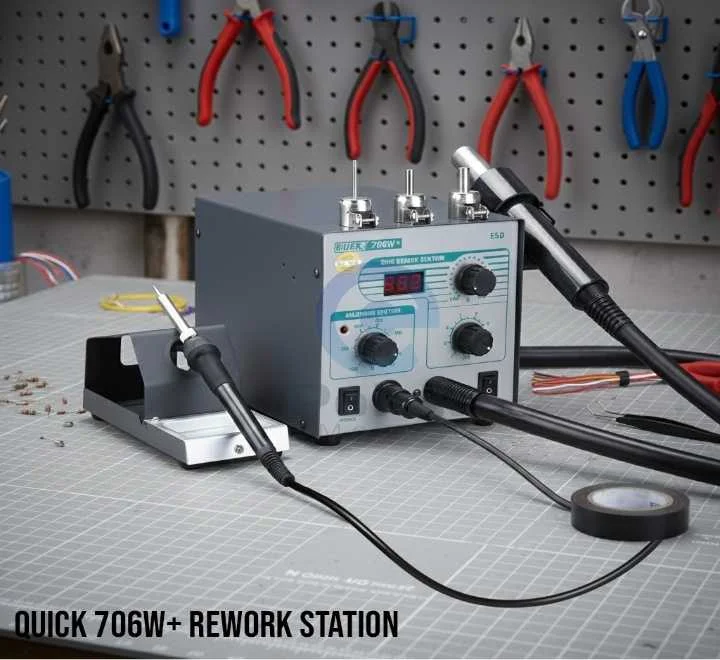

Quick 706W+ is a 2-in-1 digital rework station that combines a hot air gun and a soldering iron in a single, anti-static unit, ideal for repairing electronic components like SOIC, QFP, and BGA chips.

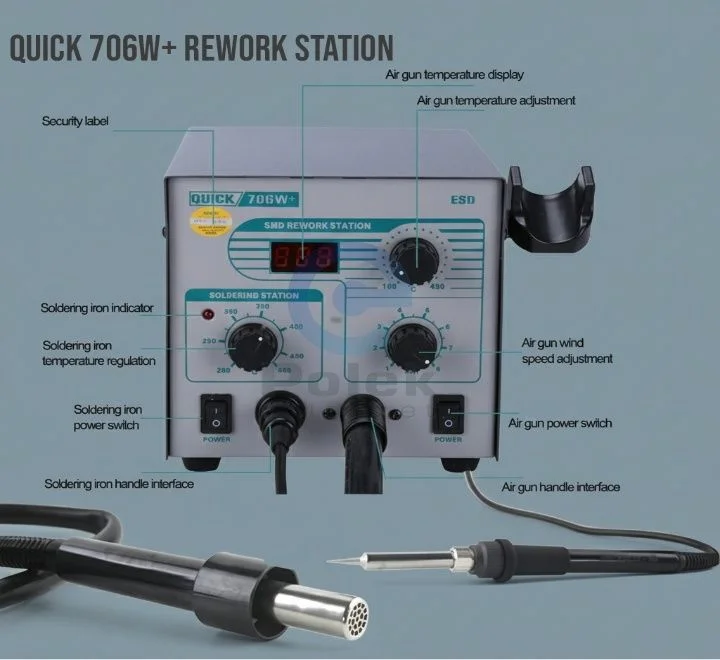

Key Features and Specifications
The Quick 706W+ is praised by users for its rapid heating, stable temperature control, and automatic cooling system that prolongs the heating element's life.
· Dual Functionality: Integrates both a hot air rework station and a conventional soldering station, which can be used simultaneously.
· Automatic Cooling System: A sensor in the hot air gun handle automatically activates a cooling process and puts the unit into standby mode when placed in its holder, extending the lifespan of the heating element.
· Precise Temperature Control: Features an LED digital display for accurate temperature readings and a closed-loop sensor to ensure stable and consistent heat, unaffected by airflow adjustments.
· Stepless Airflow Adjustment: Allows for a wide range of airflow adjustments via a knob, suitable for various desoldering tasks.
· Durable and Quiet: Equipped with a long-life brushless blower motor, resulting in small noise during operation.
|
Component
|
Power
|
Temperature Range
|
Max Airflow
|
|
Hot Air Station
|
580 W
|
100°C - 450°C
|
100 L/min (compressor pump)
|
|
Soldering Iron
|
50 W
|
200°C - 480°C
|
N/A
|
