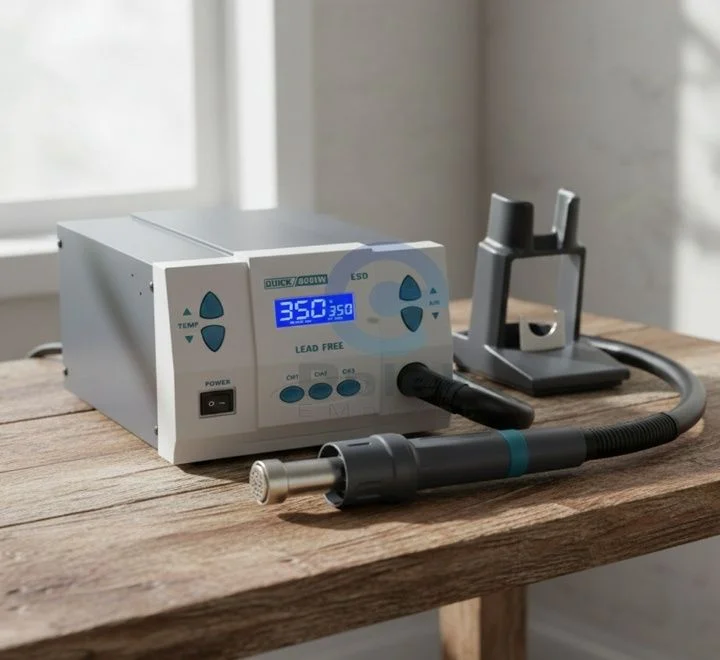

Quick 861DW
Quick 861DW is a highly regarded, professional 1000W digital hot air rework station widely used for soldering and desoldering SMD components in electronics repair. It is known for its high power, rapid heating, and precise temperature control, making it a reliable tool for both hobbyists and professionals.
Key Features and Specifications
· Power: 1000 W.
· Temperature Range: 100°C to 500°C (212°F to 932°F).
· Airflow: Adjustable from 1 to 120 L/min via a brushless vortex fan, providing stable and quiet airflow. Note that some real-world measurements show a maximum of around 50L/min.
· Display: LCD digital display for temperature and airflow settings.
· Channels: Three programmable channels (CH1, CH2, CH3) to store preset temperature and airflow settings for quick switching between tasks.

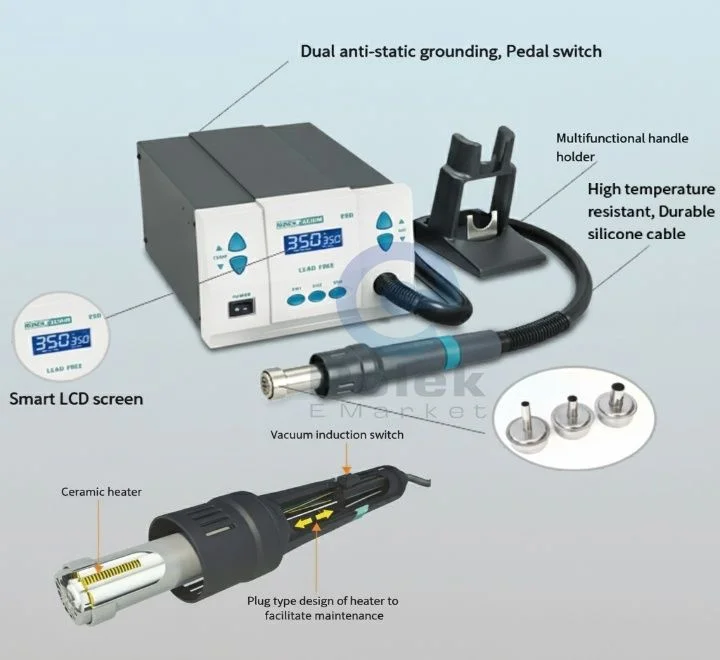

· Automatic Functions: Features a magnetic switch in the stand that automatically activates sleep mode and an auto-cooling system when the handle is holstered, which prolongs the life of the heating element.
· Safety: Includes password protection, button lock function, and is ESD safe.
· Included Accessories: Comes with a stand/holder, various nozzles (typically 4.4mm, 6.4mm, 8.4mm, and sometimes 16mm) and a power cord.
Performance and User Opinion
· Performance: The station is praised for its ability to heat up quickly and maintain the set temperature precisely (within +/- 2°C) due to its closed-loop sensor system.
· Versatility: It's effective for a wide range of applications beyond standard SMD work, including heat shrinking, drying, paint removal, and preheating.
· Usability: Users appreciate the intuitive interface and the convenience of the programmable channels and magnetic switch for stand-by mode. The handle is also considered comfortable to hold.
