Quick TSS30A

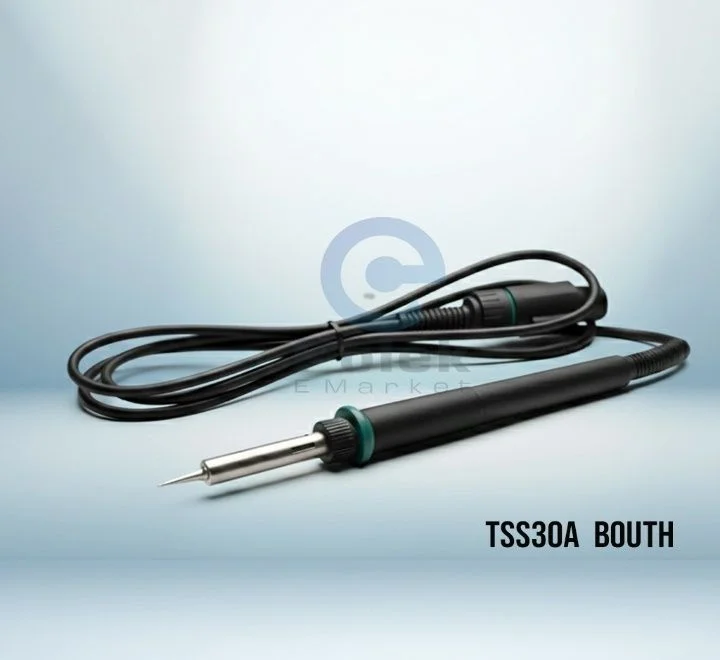

Quick TSS30A is a 70W soldering iron handle and heating assembly specifically designed for the Quick TS1100 soldering station. In some regional markets, such as Sri Lanka, the term "bouth" is commonly used as a colloquialism for a soldering iron or handpiece.
Key Specifications
· Power: 70W.
· Compatibility: Designed primarily for the Quick TS1100 lead-free soldering station.

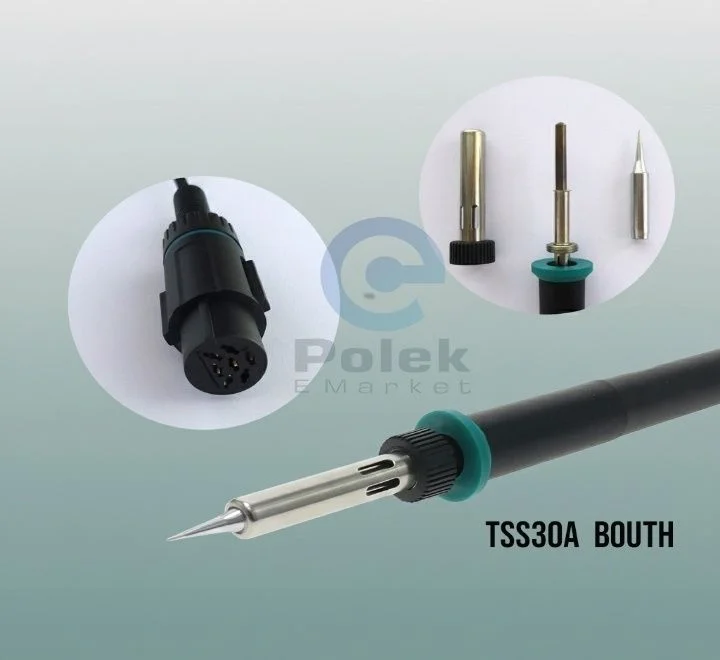

· Connector: Features a 7-pin circular connector for secure attachment to the station.
· Safety: The handle is ESD-safe, protecting sensitive electronic components from static discharge during repair.
· Cable: Typically equipped with a 110cm heat-resistant silicone cable that remains flexible even in high-temperature environments.
· Tips: Compatible with the Quick 960 (Q-T) series of soldering tips.
Components and Maintenance
If you are looking for replacement parts for the TSS30A, the following are standard available items:
· TSS30A Heating Element: The internal ceramic or metal heater that provides the 70W output.
· TSS30A-13 Nut: The knurled retaining nut used to secure the soldering tip to the handle.
· Replacement Handle: The complete handpiece assembly, including the cable and 7-pin
