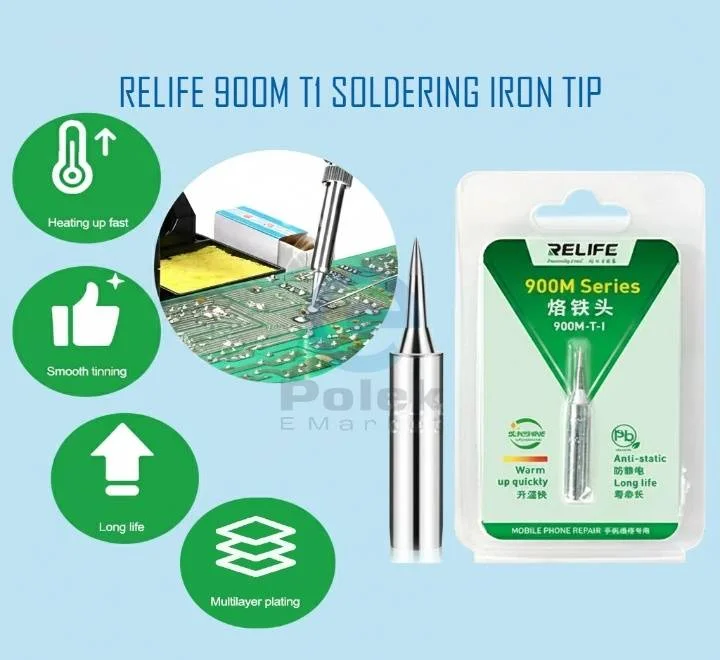

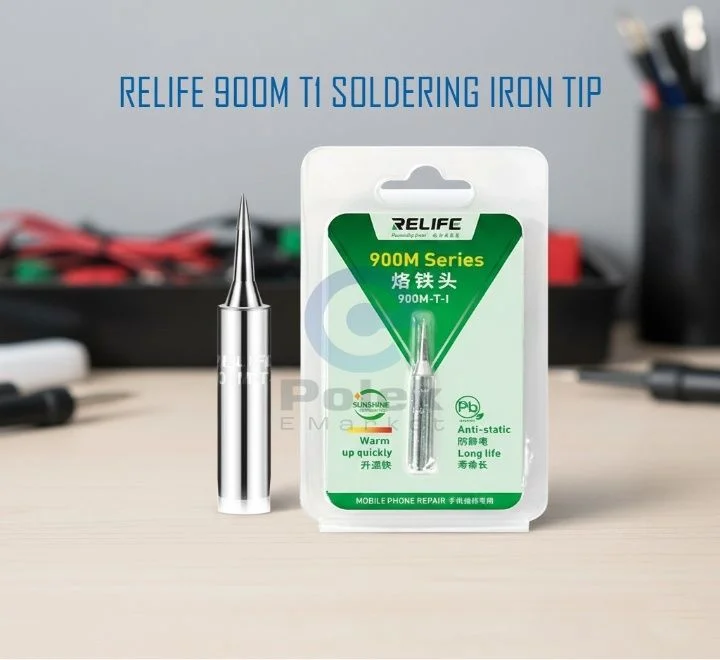

RELIFE 900M-T-I
RELIFE 900M-T-I is a popular, universal pointed/conical soldering iron tip known for its precision, durability, and wide compatibility with many standard soldering stations.
Key Features and Specifications
The RELIFE 900M-T-I tip is crafted primarily from pure copper, which contributes to superior heat conductivity and a long service life.
· Tip Type: It is an "I" type (conical/pointed) tip, which is an all-round shape suitable for small to large surface soldering and especially effective for working in narrow pitches and on micro-components.
· Tip Diameter: The point diameter is approximately 0.8mm.
· Dimensions:
o Total Length: 51mm (2″).
o Shank Outer Diameter: ~6.3mm.
o Hole Inside Diameter: ~4mm.
· Material: Made of high-strength and heat-resistant copper (oxygen-free).
· Performance: It offers quick warm-up times, consistent heating, and high-temperature oxidation resistance, allowing it to work effectively within the typical range of 350°C to 450°C.
· Application: Ideal for intricate work such as mobile phone repairs, delicate electronic component soldering, and correcting tin bridges.
Compatibility
This tip is designed to be universally compatible with most 900M series soldering irons and various popular soldering stations.
Compatible models include:
· Hakko 936, 937, 969
· Weller
· X-Tronic
· Atten
· Quick
· Aoyue
· Yihua 936, 939
· TS1100 series stations
