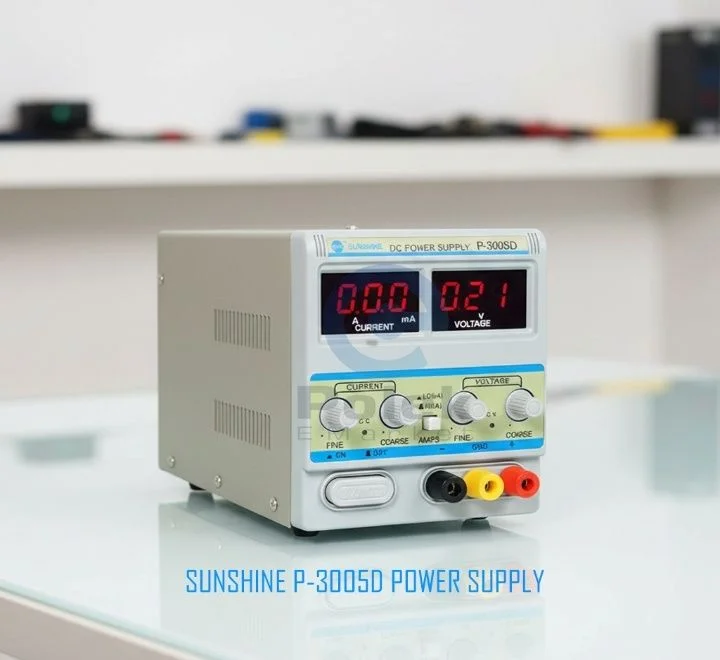

SUNSHINE P-3005D
SUNSHINE P-3005D is a regulated DC power supply with a continuously adjustable output of 0 to 30V and 0 to 5A, designed for applications such as electronic maintenance, laboratory work, and educational projects.
Features and Specifications
The device offers precise control and stable power output with various protection features.
- Adjustable Output: The output voltage can be continuously adjusted from 0 to 30V DC, and the current from 0 to 5A.

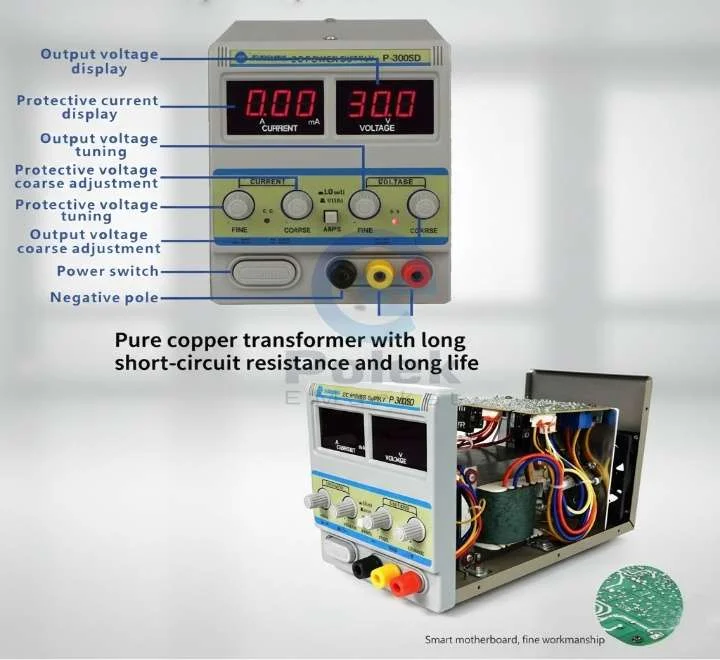

- Display: It is equipped with a three-digit LED/LCD display for clear and accurate readings of both voltage and current.
- Stability: It offers high stability, with a voltage stability of
≤0.01%+2mVis less than or equal to 0.01 % plus 2 mV
≤0.01%+2mV
and load stability of
≤0.01%+5mVis less than or equal to 0.01 % plus 5 mV
≤0.01%+5mV.
- Protection: The unit includes built-in protection mechanisms against overload, overcurrent, overheat, and short-circuit events to ensure safe operation.
- Cooling: An intelligent temperature-controlled fan provides efficient ventilation and heat dissipation, contributing to a longer service life.
- Operation Modes: The power supply operates in both constant voltage (CV) and constant current (CC) modes.
- Input Voltage: It supports switchable input voltages of AC 110V/220V +/- 10%.
