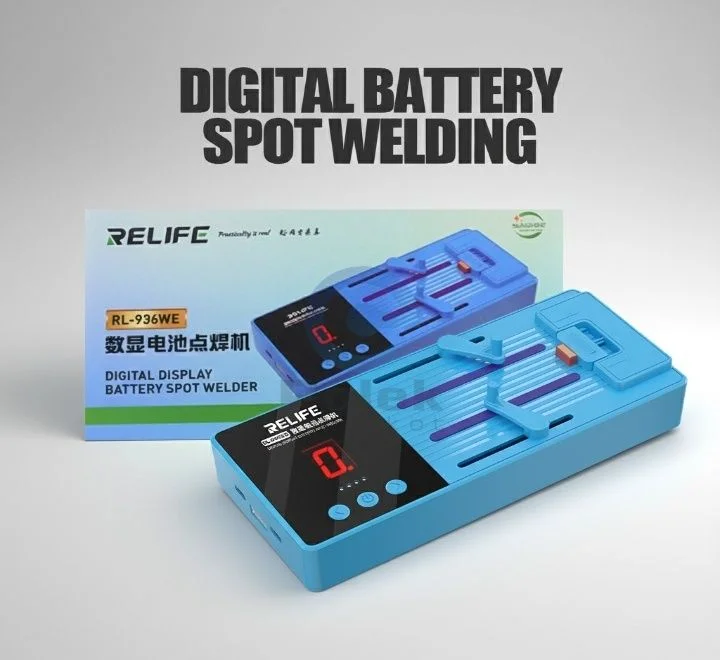

RELIFE RL-936WE
RELIFE RL-936WE is a portable, digital display battery spot welding machine primarily designed for precision welding during mobile phone battery and other small battery pack repairs.
Key Features & Specifications

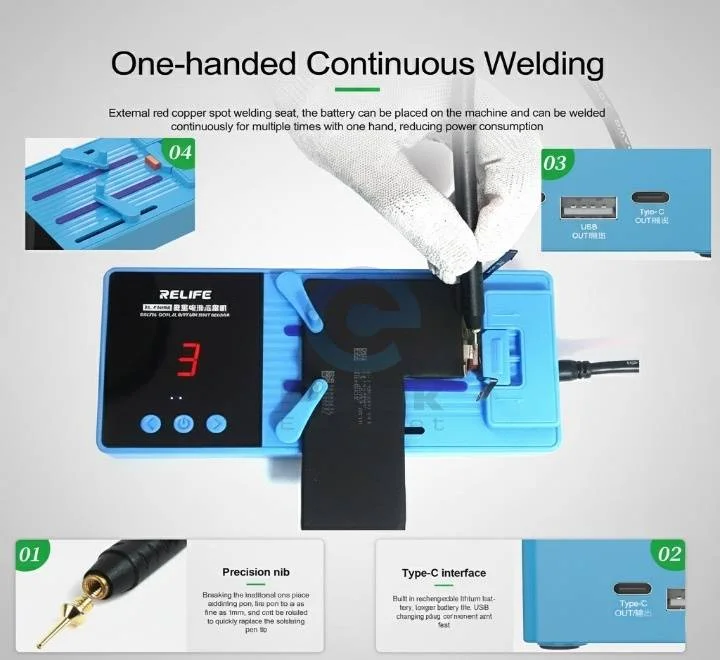

· Continuous Welding: Features an external red copper spot welding seat and integrated fixture, allowing for continuous, one-handed operation while securely holding the battery and protection board to ensure precise positioning and avoid poor welding results from shaking.
· Adjustable Power: Offers a 6-speed welding mode to accommodate various repair needs. It also has a specific 6th gear for short-circuit repairs.
· Digital Display & Power Indicator: The machine includes an intuitive digital interface with a four-grid LED display to monitor the power level and settings.
· Versatile Compatibility: Suitable for precision welding of lithium battery nickel sheets, as well as stainless steel sheets. It supports welding for mainstream mobile phone brands like iPhone, Huawei, Xiaomi, Oppo, and Vivo.
· Multi-functionality: Equipped with both USB and Type-C output ports, allowing it to function as a portable power source for charging other devices.
· Portable & Compact: With a net weight of approximately 250g, it is small and lightweight, making it highly portable for on-the-go repairs.
Technical Specifications
· Brand: RELIFE
· Model: RL-936WE
· Net Weight: ~250g
· Size: 180 x 80 x 45mm
· Battery Capacity: 1200mAh (built-in rechargeable lithium battery)
· Welding Output Current: 400A (MAX)
· Welding Output Voltage: 4.2V (MAX)
· USB Input Current: 5V/2A (MAX)
· USB Output Current: 5V/2.4A (MAX)
· Type-C Output Current: 5V/2.4A (MAX)
