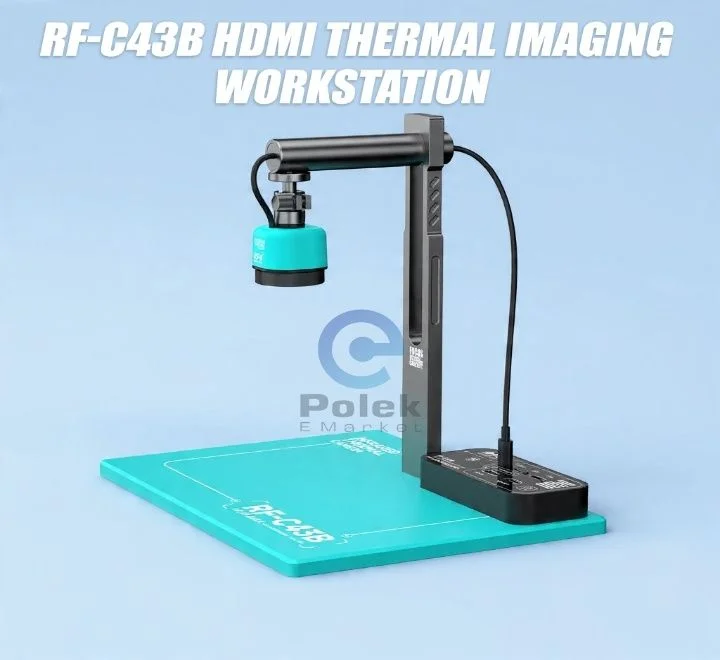

RF4 RF-C43B Intelligent Thermal Imager

RF4 RF-C43B Intelligent Thermal Imager is a specialized camera primarily used for diagnosing faults and analyzing heat distribution on electronic circuit boards, particularly in mobile phone repair. It functions as an independent system or integrates with existing microscope setups to provide precise thermal data.

Key Features and Specifications

·         High Resolution: Features a 256x192 infrared (IR) resolution with 49,000 temperature measurement points for detailed analysis and industrial-grade accuracy.

·         Independent Operation: It can function as an independent intelligent system, connecting directly to a monitor without requiring external devices or a PC for basic operation.

·         Microscope Compatibility: Designed for seamless integration with a variety of microscope cameras, allowing for dual-mode linkage (visible light + thermal imaging) to compare data visually.

·         Automatic Tracking: The camera automatically tracks high and low-temperature points, helping to quickly locate fault points on motherboards.

·         Adjustable Design: It features an adjustable base design for multi-angle positioning and stable support, freeing up hands during intricate work.

·         Connectivity: Offers multiple connectivity options, including direct connection to a monitor via HDMI (or a similar port) and data transfer via USB-C.

·         Software Analysis: It is compatible with PC analysis software (like ThermoTools mentioned for similar cameras) for professional post-processing and detailed reporting of thermal images.

Applications

The RF4 RF-C43B is primarily targeted at professionals and enthusiasts involved in electronics design, repair, and quality control.

·         Electronics Repair: Its main application is the quick detection and diagnosis of faults like short circuits on mobile phone and other electronic circuit boards.

·         Quality Control: It is useful in industrial manufacturing for identifying overheating components and soldering defects.

·         Research & Education: Educational institutions and R&D labs can use it for scientific experiments and teaching purposes, allowing hands-on experience with thermal analysis.
