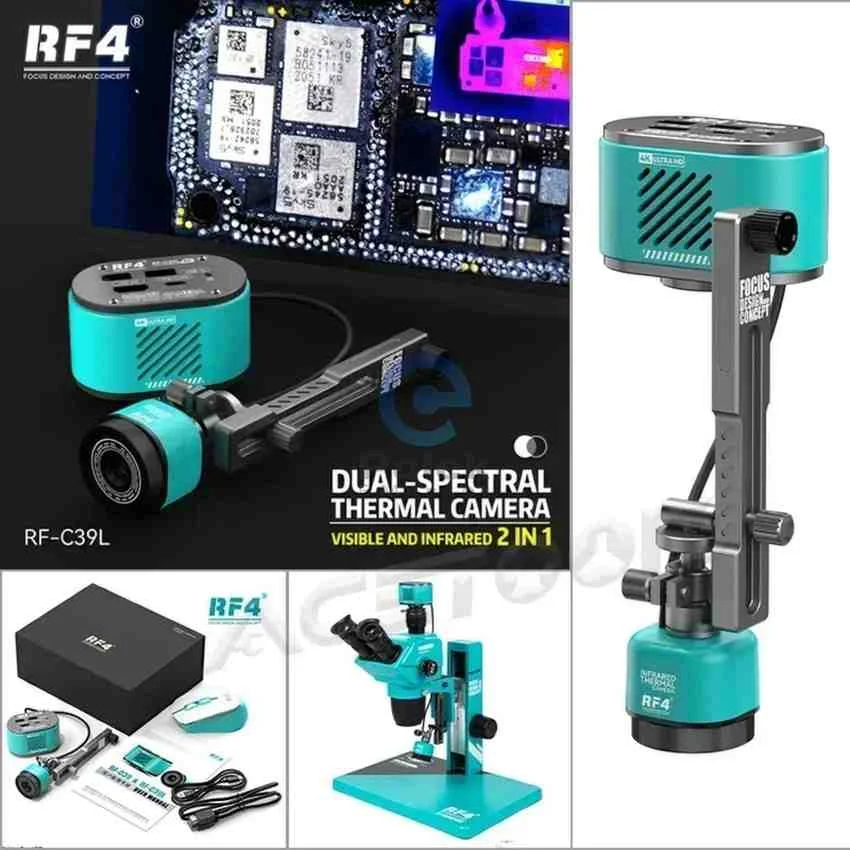

RF4 RF-C39L Dual Spectral 4K Thermal Imager Camera for Microscope
The RF4 RF-C39L is a professional 2-in-1 dual-spectral camera that combines 4K visible light imaging with infrared thermal analysis, specially designed for microscope-based motherboard and PCB repair diagnostics. Built with a high-performance 1/2.8-inch Sony CMOS sensor featuring 8.29 million pixels, it delivers ultra-clear 4K HDMI output (3840×2160 @30fps) and smooth 1080P @60fps display, helping technicians easily identify micro solder joints, PCB traces, and fault points. The camera supports photo and video capture in JPG format, ensuring accurate documentation during repair work.
Designed for repair labs and precision electronics diagnostics, the RF-C39L supports both manual and automatic exposure and white balance, with adjustable RGB, brightness, and crosshair overlays for precise alignment. Dual USB 2.0 ports allow direct mouse control and U-disk storage without drivers, making operation simple and efficient. The camera supports multilingual menus and saves parameter settings after shutdown for convenience. (Note: Microscope and stand shown in images are for reference only and not included in the package.)

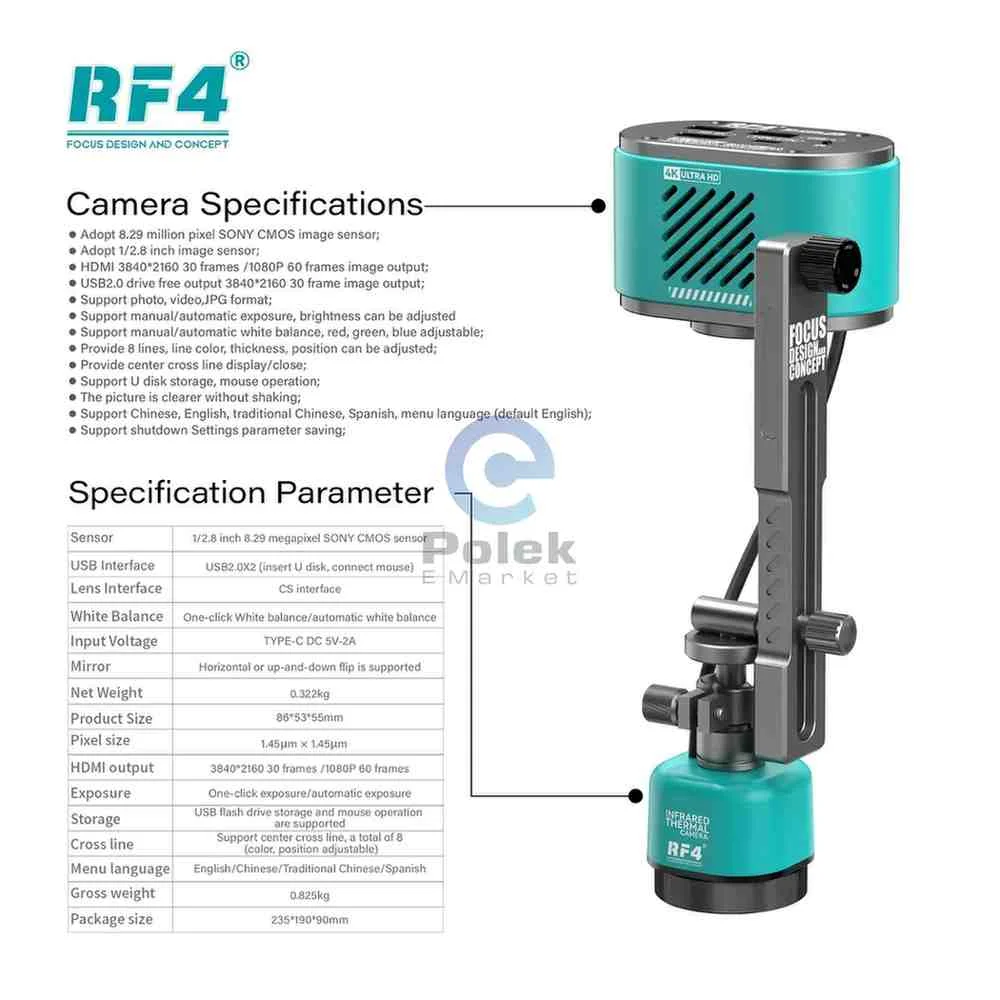

Specifications
-
Brand: RF4
-
Model: RF-C39L
-
Type: Dual-Spectral 4K Visible + Infrared Thermal Camera
-
Image Sensor: 1/2.8" SONY CMOS
-
Resolution: 8.29 Megapixels
-
HDMI Output: 3840×2160 @30fps / 1920×1080 @60fps
-
USB Output: USB 2.0 (Driver-Free) – Supports U-disk & Mouse
-
Photo/Video Format: JPG
-
Pixel Size: 1.45μm × 1.45μm
-
Exposure: Manual / Automatic (One-Click Exposure)
-
White Balance: Manual / Automatic (One-Click White Balance)
-
Crosshair Lines: 8 Adjustable Lines (Color, Thickness, Position)
-
Mirror: Horizontal / Vertical Flip
-
Lens Interface: CS Mount
-
Input Power: Type-C DC 5V / 2A
-
Menu Language: English, Chinese, Traditional Chinese, Spanish
-
Storage: USB Flash Drive Supported
-
Net Weight: 0.322kg
-
Product Size: 86 × 53 × 55mm
-
Application: Microscope PCB repair, Motherboard diagnostics, IC inspection
