YAXUN YX-AK43

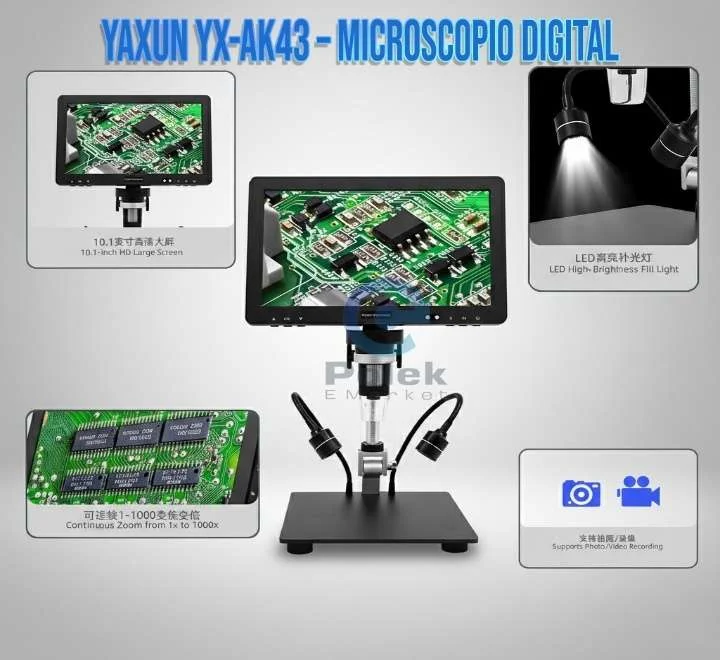

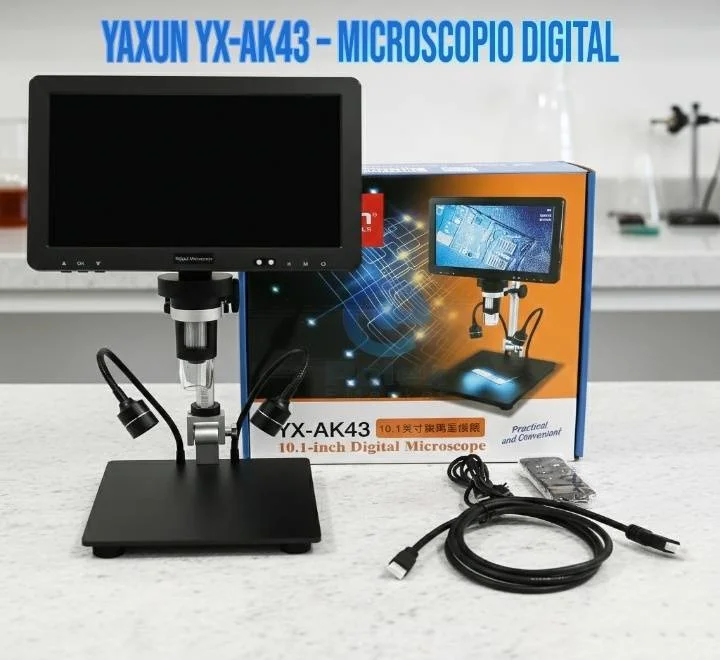

YAXUN YX-AK43 is an all-in-one digital microscope designed for precision tasks such as mobile phone PCB repair, electronics inspection, and jewelry making. It features a large integrated display and high-resolution imaging capabilities to allow for standalone operation without a computer.

Key Specifications

·         Display: A 10.1-inch IPS screen with a resolution of 1920×1200.

·         Magnification: Combined digital and optical magnification ranging from 7X to 220X.

·         Camera Sensor: Equipped with a 12MP Sony CMOS sensor capable of capturing 4032×3024 still images.

·         Video Recording: Supports 1080p @ 30fps and up to 4K @ 15fps.

·         Storage: Features a TF card slot supporting up to 128GB for saving images and videos directly on the device.

·         Battery: Powered by a 6000mAh battery, facilitating portable use.

Connectivity and Design

The device is built for versatility in professional workshops:

·         Outputs: Includes HDMI 2.0 and USB 3.0 ports, allowing for dual-screen viewing on an external monitor or TV.

·         Illumination: Features adjustable LED lighting to ensure clear visibility of intricate components.

·         Working Distance: Offers a flexible working range of 20mm to 150mm.
