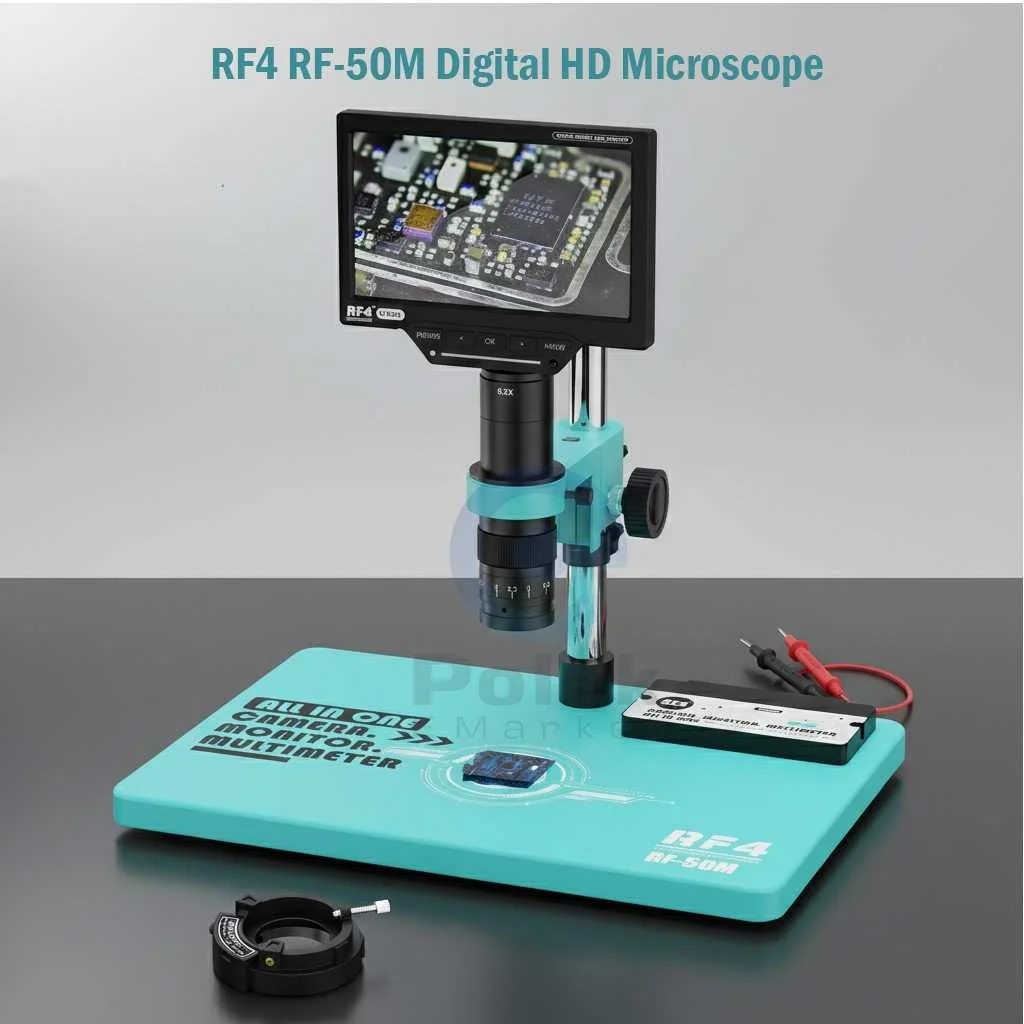

RF4 RF50M Digital Video Microscope
The rf4 rf50m is a professional-grade digital video microscope engineered for precision electronics inspection, pcb soldering and repair, mobile phone motherboard servicing, component-level diagnostics and other fine-detail work. It combines a built-in high-definition camera, a display monitor, and a full-featured multimeter — making it a versatile all-in-one tool for repair shops, electronics technicians, and quality-control labs.

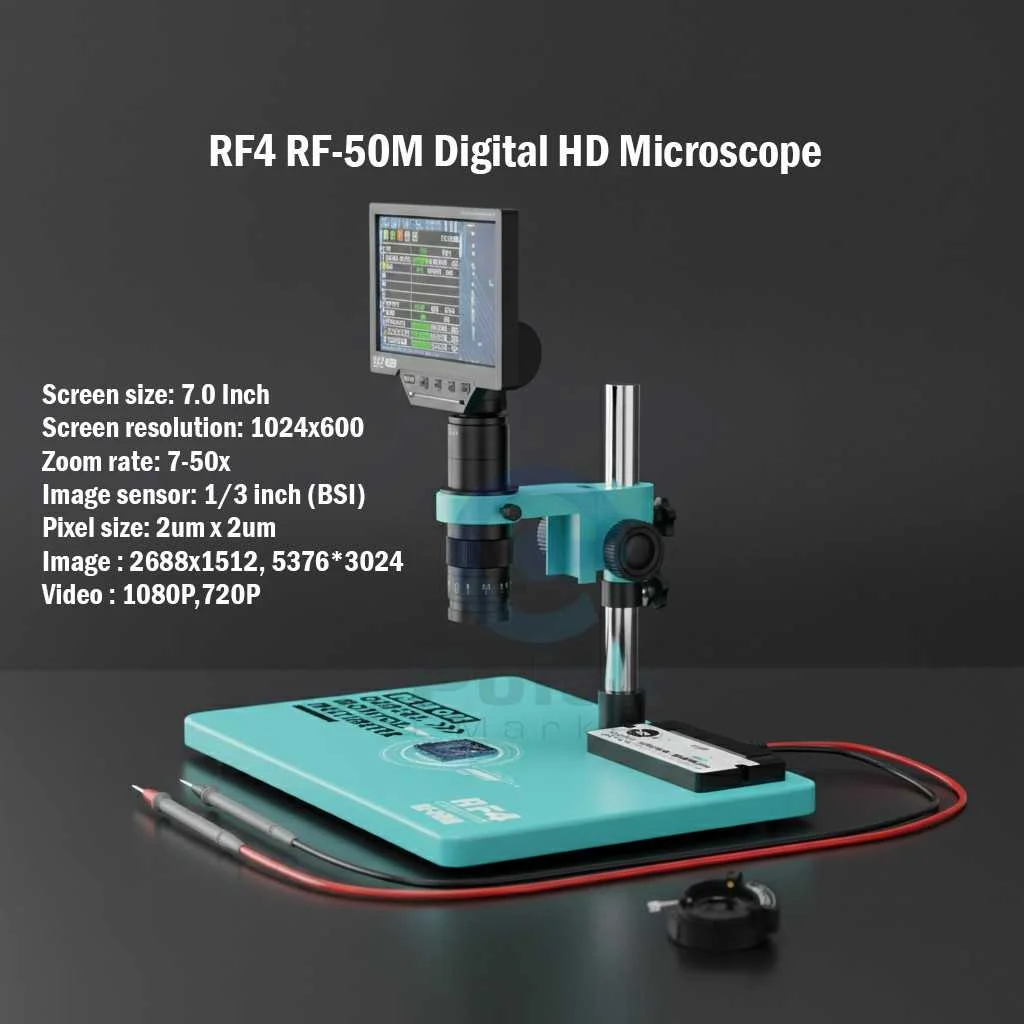

Specifications
Screen size: 7.0 Inch
Screen resolution: 1024×600
Zoom rate: 7-50x
Image sensor: 1/3 inch (BSI)
Pixel size: 2um x 2um
Image resolution: 2688×1512, 5376*3024 (Interpolation)
Video resolution: 1080P30 (Clear),720P60 (Smooth)
HDMI resolution: 720P60
USB resolution: 1080P20?720P30?WVGAP60
Exposure control: AE lock, Exposure compensation (10 level adjustable)
White balance: White balance: Auto, Manual (R,G,B 10 level adjustable) , Calibration
Image control: Ten level adjustment of contrast, saturation and sharpness
Comparison of the PIP: Comparison of the PIP: Full screen, left and right, up and down, 1/4
Grid: 8 groups, position, color, thickness adjustable
Measurement: point, line, circle, angle (Optional)
Multimeter: resistance, DC voltage, AC voltage, diode, on-off, capacitance, frequency
Language: English, Simplified Chinese, Traditional Chinese
IR Remote: Max 5 meters
HDMI interface: TYPE-A
USB interface: TYPE-C USB2.0
Extended storage: Max support 64 G TF card
Working distance: 10cm
