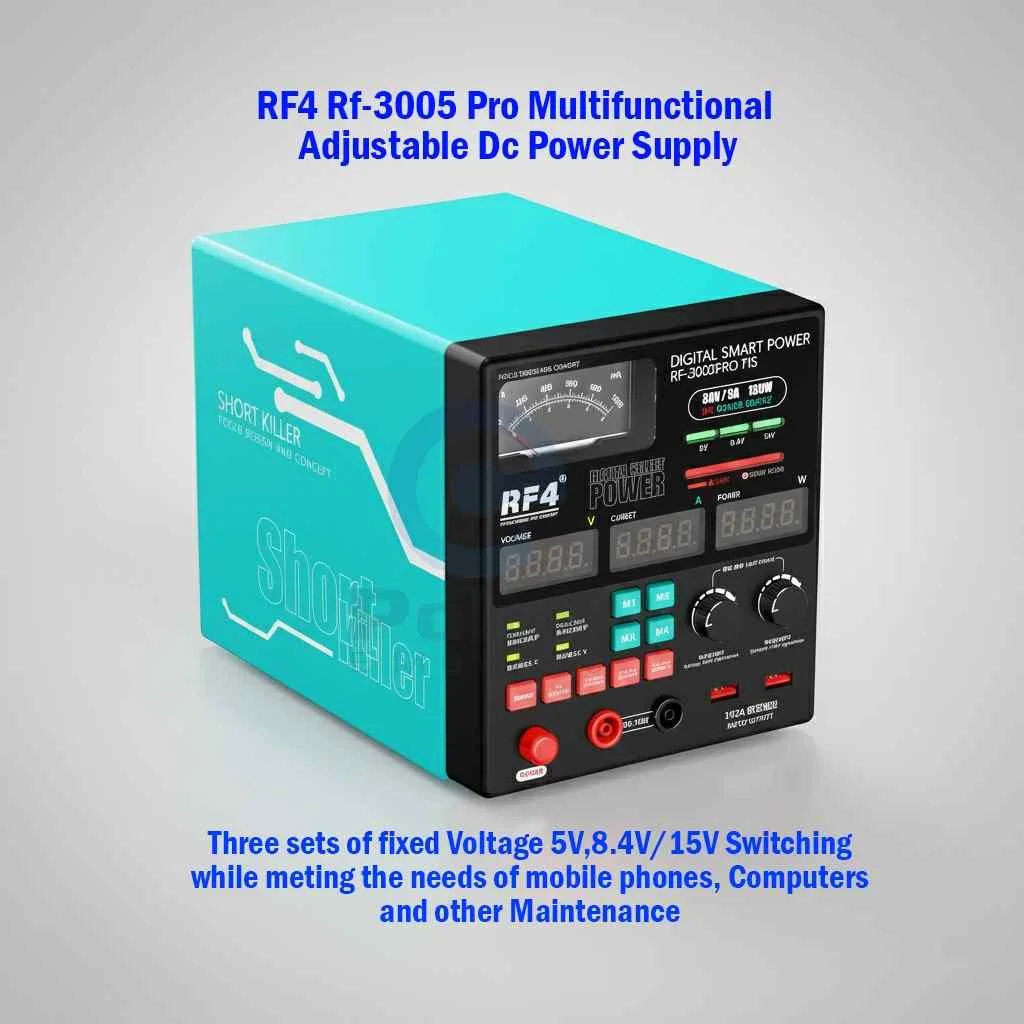

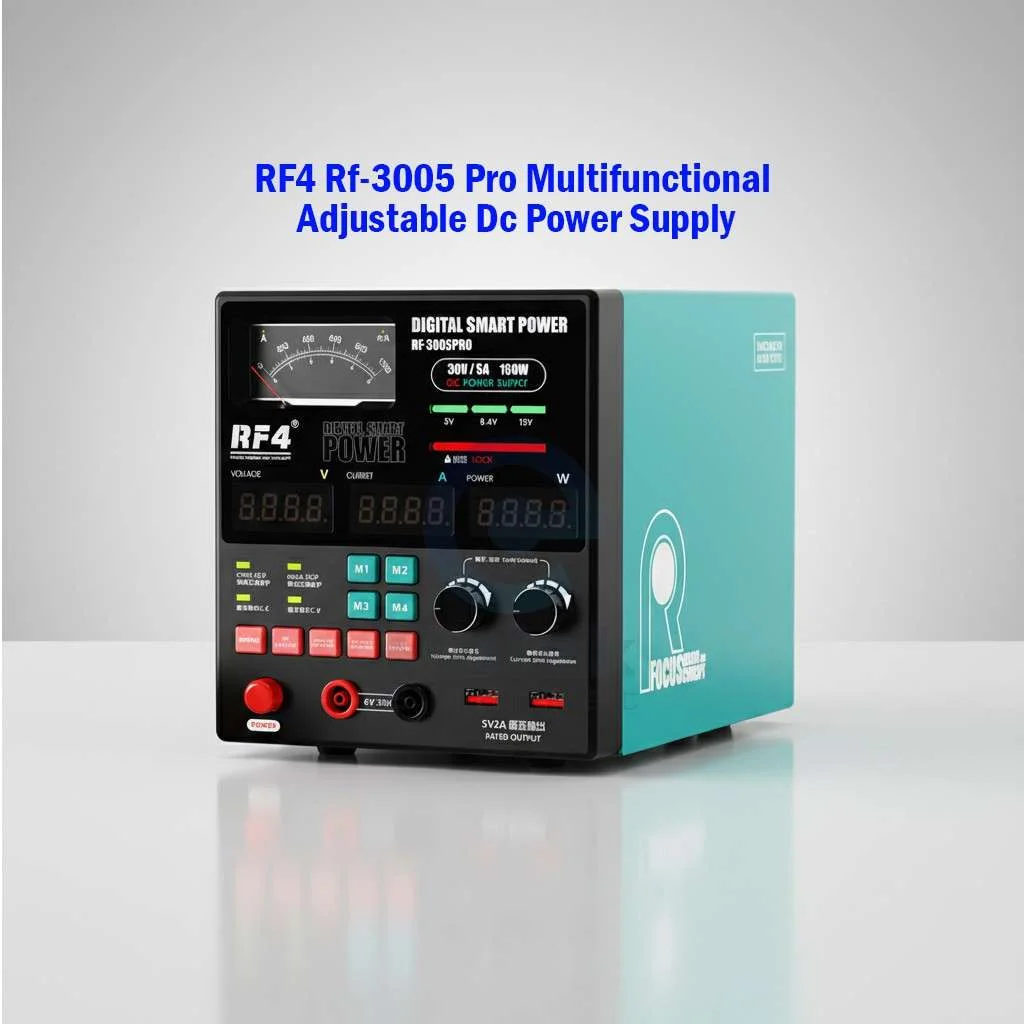

RF4 RF-3005 Pro DC Power Supply
The RF4 RF-3005 pro is a high-performance DC power supply designed for electronics repair, mobile phone motherboard testing, PCB prototyping, and lab use.
Delivering up to 30V and 5A with stable output, this 150W power supply provides accurate voltage and current control, making it ideal for sensitive electronic components, circuit testing, and professional repair work.
Specifications
- Input Voltage: 110 V / 220 V AC
- Output Voltage: 0 to 30 V DC
- Output Current: 0 to 5 A
- Maximum Power: ~ 150 W
- Voltage Resolution: 10 mV
- Current Resolution: 1 mA (with 2 mA at rated 3 A)
- Display: Digital (shows voltage, current and often power)
- Protections: Over-current, Over-voltage, Over-temperature
- Interface: USB (for fixed 5V output)
- Efficiency/Conversion: ~ 88%
- Operating Modes: CC (constant current) and CV (constant voltage) adjustable
- Cooling: Intelligent fan cooling / temperature sensing
- Lock Function: Has a lock/unlock function for knobs to prevent accidental changes.
