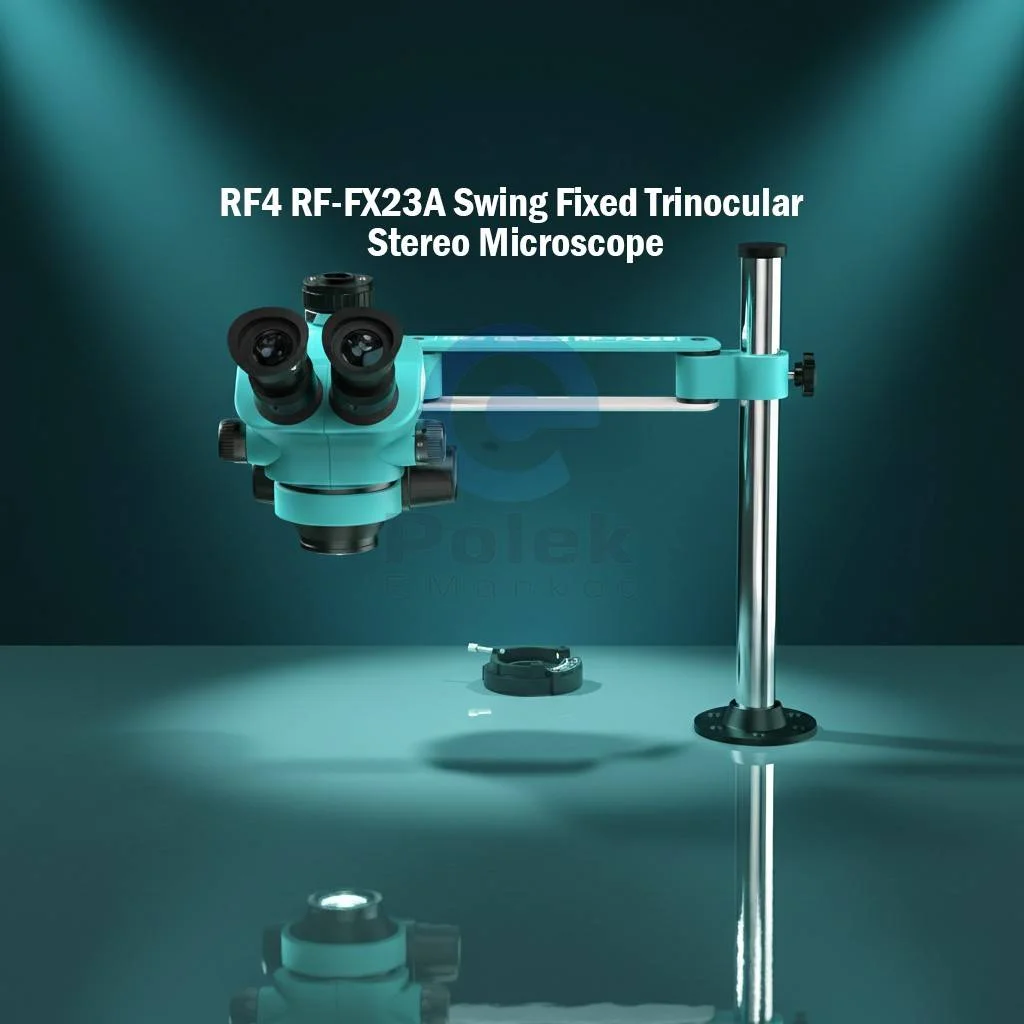

RF4 RF-FX23A Trinocular Stereo Microscope
The RF4 RF-FX23A is a professional trinocular microscope set designed for mobile phone PCB repair, welding, and electronics inspection.
Featuring 7–50X continuous magnification and a swing fixed support, this microscope set provides stable positioning, clear stereo imaging, and smooth operation for high-precision repair work. Its trinocular design allows simultaneous viewing and camera output, making it ideal for documentation, training, and live monitoring during PCB maintenance.

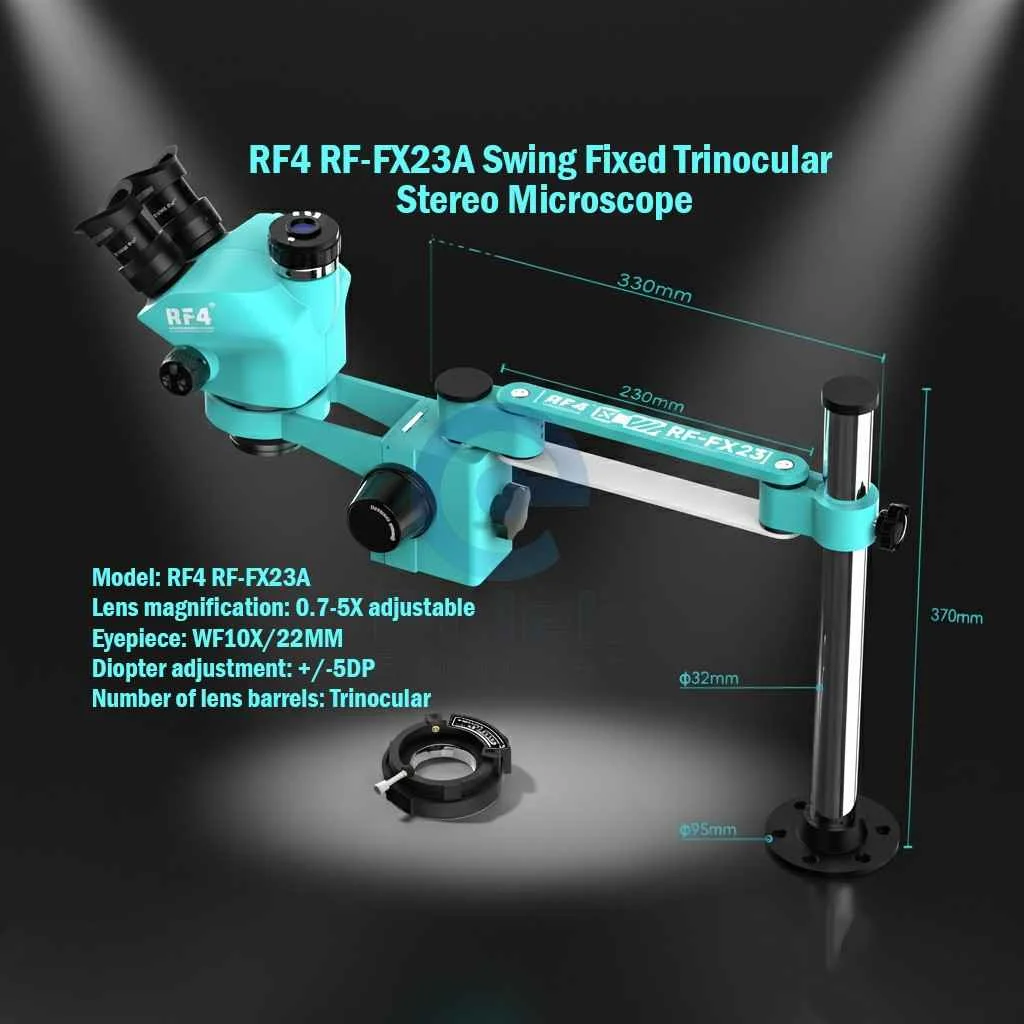

Specifications
- Model: RF4 RF-FX23A
- Magnification: 7X – 50X continuous zoom
- Eyepieces: WF10X / 22mm wide-field
- Optical Tube: Trinocular (binocular + camera port)
- Working Distance: Approx. 100–110 mm
- Focus System: Precision rack-and-pinion focusing
- Support Type: Swing fixed stand for flexibility and stability
- Illumination: Compatible with LED ring lights and auxiliary lighting
- Applications:
- Mobile phone motherboard and PCB repair
- BGA and IC micro-soldering
- Electronics inspection and assembly
- Lab demonstration, teaching, and industrial QC
