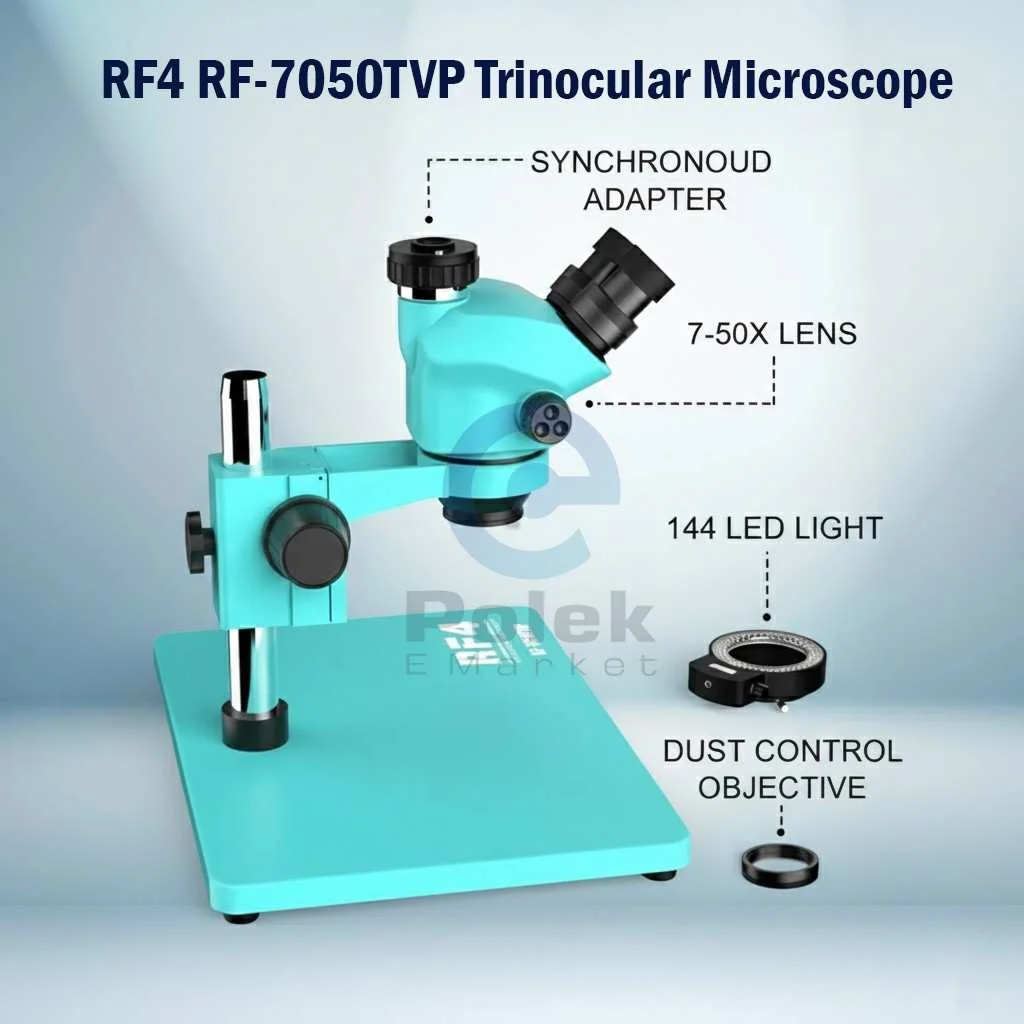

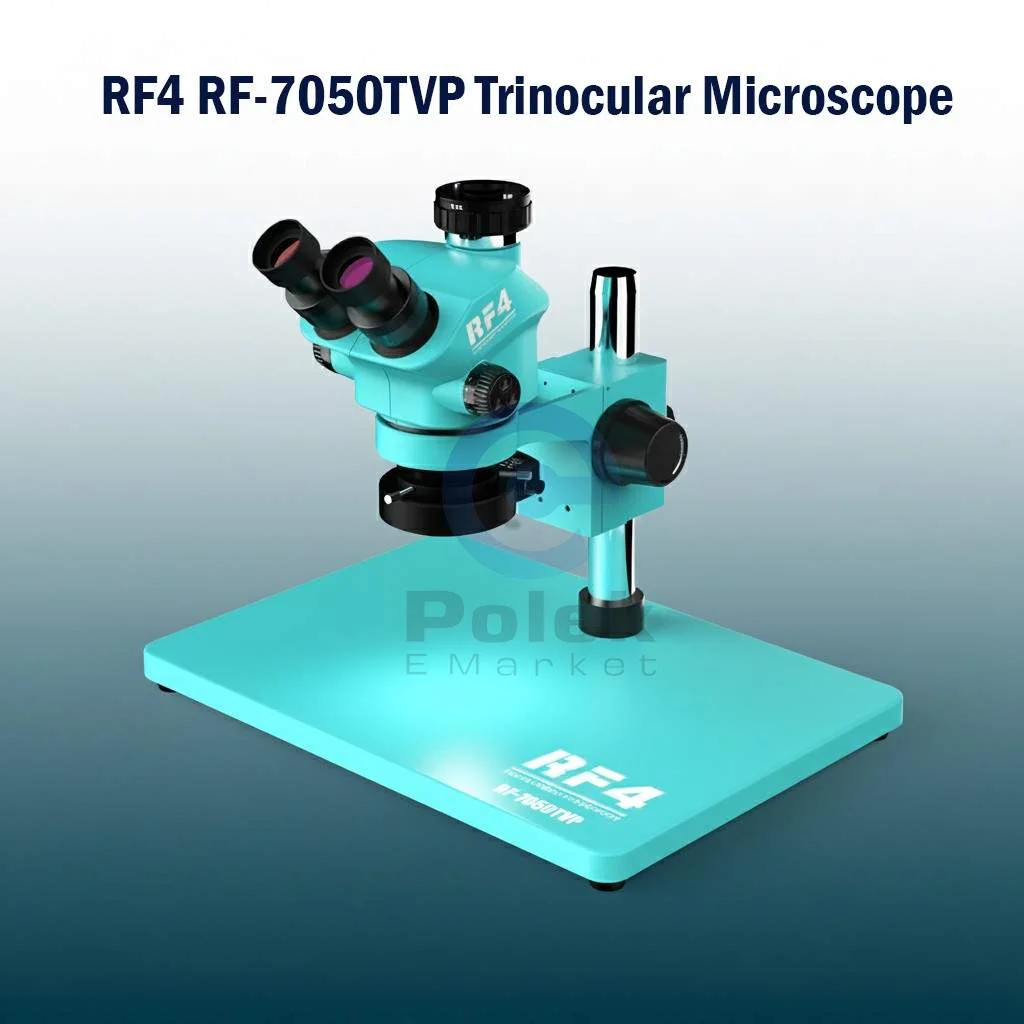

RF4 RF7050TVP
The RF4 RF7050TVP is a professional-grade trinocular stereo microscope designed for mobile phone repair, PCB inspection, IC soldering, and precision electronics work.
Featuring 7–50X continuous synchronous zoom, wide-field optics, and a sturdy multifunctional base, this microscope ensures high-resolution imaging, comfortable observation, and stability for demanding repair tasks.
Specifications
- Model: RF4 RF7050TVP
- Magnification: 7X – 50X synchronous zoom
- Eyepieces: WF10X / 22mm wide-field
- Objective Lens: 0.7X – 5X continuous zoom
- Optical Tube: Trinocular (binocular + camera port)
- Working Distance: Approx. 100–110 mm
- Focus Mechanism: Precision rack-and-pinion focusing
- Illumination: Compatible with external LED ring lights or adjustable lighting
- Camera Support: HDMI / USB microscope cameras supported
- Stand / Base: Large aluminum alloy repair base for stability
- Applications:
- Mobile phone motherboard repair
- BGA rework & IC micro-soldering
- PCB component inspection
- Teaching, lab demonstration, industrial quality control
