Replacement Blower Handle For Kailiwei 8586d Bga Rework Hot Air Gun

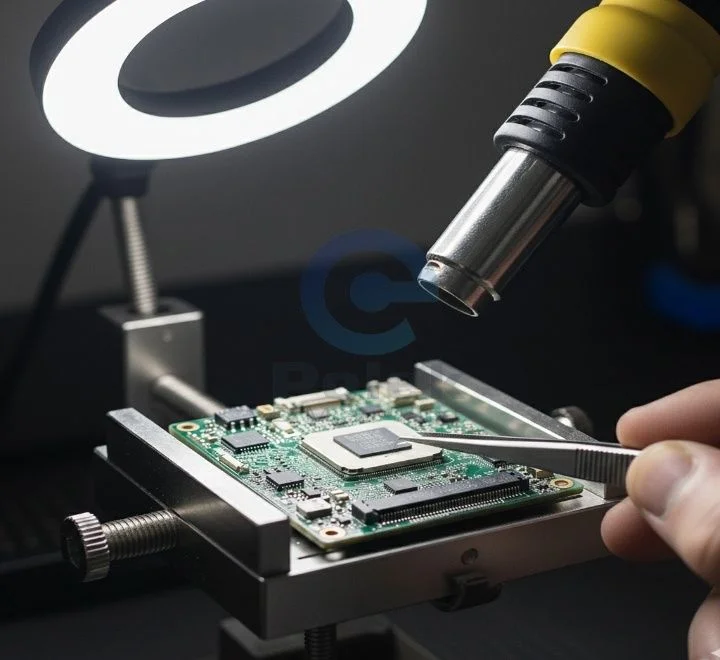

The Kailiwei 8586D blower handle (also referred to as a hot air gun handle) is a critical component of the Kailiwei 8586D 2-in-1 SMD Rework Station. It is designed for tasks such as removing/welding ICs, heat-shrinking, and repairing various electronic components.
Key Specifications and Features
· Power and Temperature: The hot air gun has a rated output power of 750W. It supports a temperature range from 100°C to 500°C (some variations state up to 450°C).
· Internal Components: The handle typically contains a heating core, a magnetic sensor switch, a temperature sensor, and a power cord.
· Airflow System: It uses a brushless fan located within the handle itself, providing an air volume of up to 120L/min with low noise (<45dB).
· Automatic Standby/Cooling: The handle features a sensor switch; the system enters operating mode when the handle is picked up and automatically switches to standby (cooling) mode when placed back on its holder. This automatic cooling function helps prolong the heater's life.
Replacement and Compatibility
If you are looking for a replacement handle, ensure it matches the technical requirements of the 8586D station:

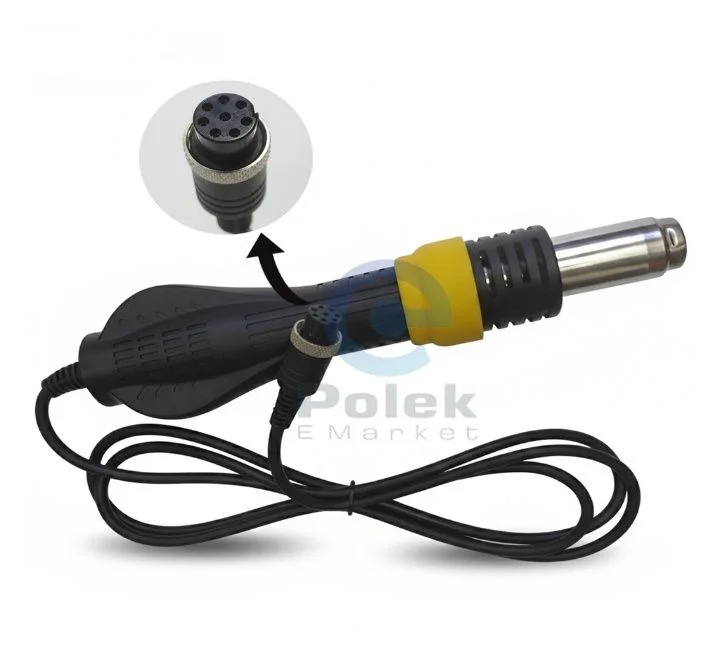

· Connector Type: Replacement handles for the 8586D are often listed as having an 8-hole or 8-pin configuration.
· Voltage: The internal brushless blower fan typically operates on DC 24V (though some variants may use 12V).
· Pin Wiring: For manual repairs, the 8 wires generally correspond to:
o Heater: 2 wires (usually Black/Red or Orange/White depending on the manufacturer).
o Sensor: 2 wires.
o Fan: 2 wires (Positive/Negative).
