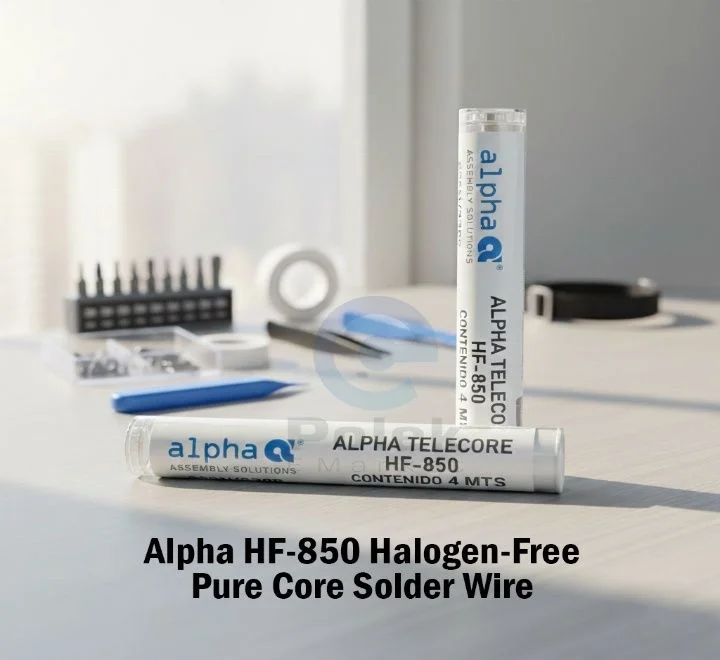

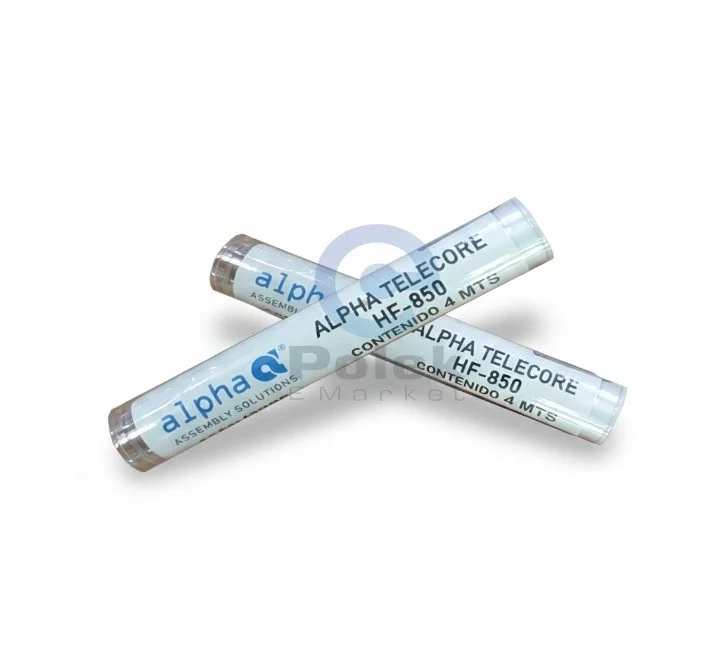

Alpha HF-850
Alpha HF-850 is a premium, halogen-free / halide-free flux-cored solder wire designed for no-clean soldering applications. It delivers very fast wetting, low spatter, and clear, non-tacky flux residues, producing clean, reliable solder joints with excellent mechanical and electrical integrity. Its halogen-free formulation meets stringent environmental and safety standards, making it ideal for modern electronics
|
Feature
|
Specification / Detail
|
|
Product Type
|
Halogen-Free / Halide-Free flux-cored solder wire (no-clean)
|
|
Alloy Options
|
Multiple alloys available (depending on batch), including SAC305 (Sn96.5/Ag3.0/Cu0.5), SACX® Plus 0307, Sn99.3/Cu0.7, InnoLot (proprietary), and even Sn63/Pb37 for legacy applications.
|
|
Melting / Liquidus Temperature (depending on alloy)
|
• SAC305: ~ 217–221 °C
• Sn99.3/Cu0.7: ~ 227 °C
• Sn63/Pb37: ~ 183 °C (eutectic)
|
|
Flux Core
|
No-clean flux (halogen-free / halide-free)
|
|
Flux Classification / Cleanliness Standard
|
Compliant with IPC J-STD-004 (ROL0) — low halide content (< 500 ppm halides)
|
|
Physical Properties
|
Rosin softening point: ~70–80 °C; Acid value: 180–200 mg KOH/g flux.
|
|
Shelf Life & Storage Conditions
|
Shelf life up to 36 months when stored at 0–40 °C.
|
|
Key Performance Traits
|
Very fast wetting & flow, low flux spatter, low fumes, clean non-tacky residues, good solder joint appearance, high first-pass yield (> 80%) on spread tests.
|
|
Typical Uses / Applications
|
Manual soldering, rework, board-level assembly, connector soldering, LED board-to-board, high-density PCBs, automotive, consumer electronics, mobile devices, general no-clean soldering tasks.
|
