Sugon 3005PM

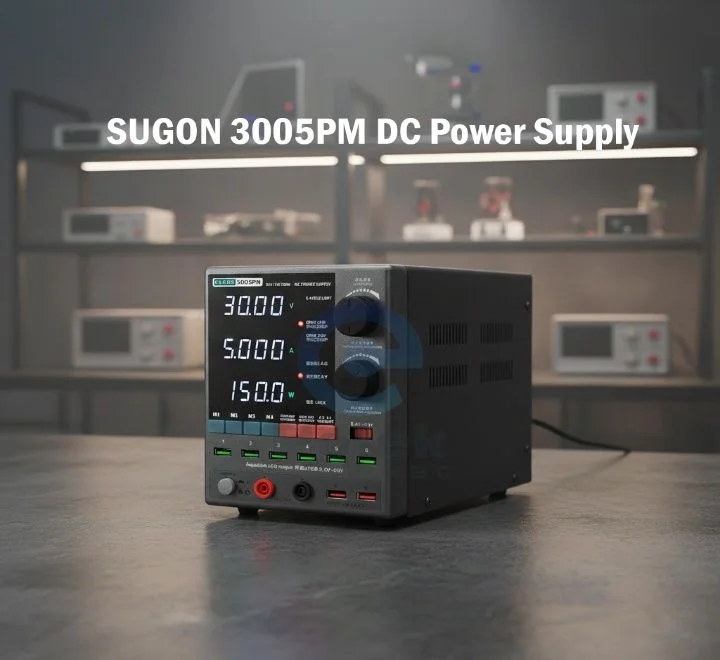

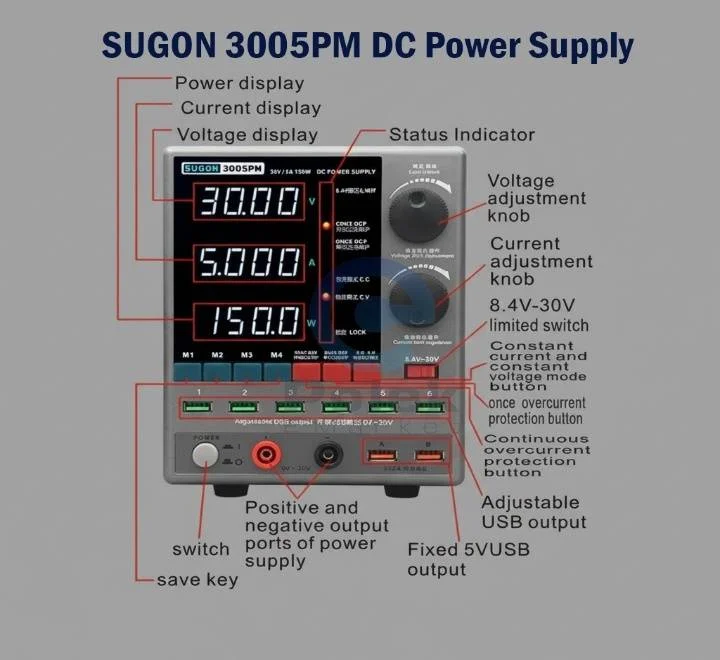

The Sugon 3005PM is a high-precision adjustable DC bench power supply designed for laboratory testing, mobile repair, electronics diagnostics, and professional workbench use. Featuring a 0–30V / 0–5A adjustable output, this unit delivers up to 150W of stable DC power for powering circuits, testing boards, charging modules, or repairing motherboards. It includes multiple USB output ports (both adjustable and fixed 5V) for added flexibility, a 4-digit LED display for real-time voltage/current/power monitoring, and intelligent protection features to keep both your projects and the power supply safe.
|
Specification
|
Detail
|
|
Model
|
Sugon 3005PM
|
|
Type
|
Adjustable DC Bench Power Supply
|
|
Input Voltage
|
AC 110V / 220V ±10%, 50/60Hz (depending on region)
|
|
Output Voltage Range
|
DC 0–30V (continuously adjustable)
|
|
Output Current Range
|
DC 0–5A (continuously adjustable)
|
|
Maximum Power
|
150W
|
|
Display
|
4-digit LED (voltage, current, power)
|
|
USB Outputs
|
6× adjustable USB outputs (0-30V) + 2× fixed 5V / 2A USB outputs
|
|
Memory Function
|
4 memory channels for storing voltage/current settings
|
|
Protection Features
|
Over-current, overload and short-circuit protection
|
|
Safety Voltage Mode
|
Switchable 8.4V / 30V for sensitive devices such as laptops
|
|
Cooling
|
Intelligent fan control
|
|
Dimensions
|
Approx. 320 × 190 × 270mm
|
|
Weight (approx.)
|
~4.3-5.5kg
|
|
Certifications
|
CE, FCC, RoHS (varies by region/model)
|
