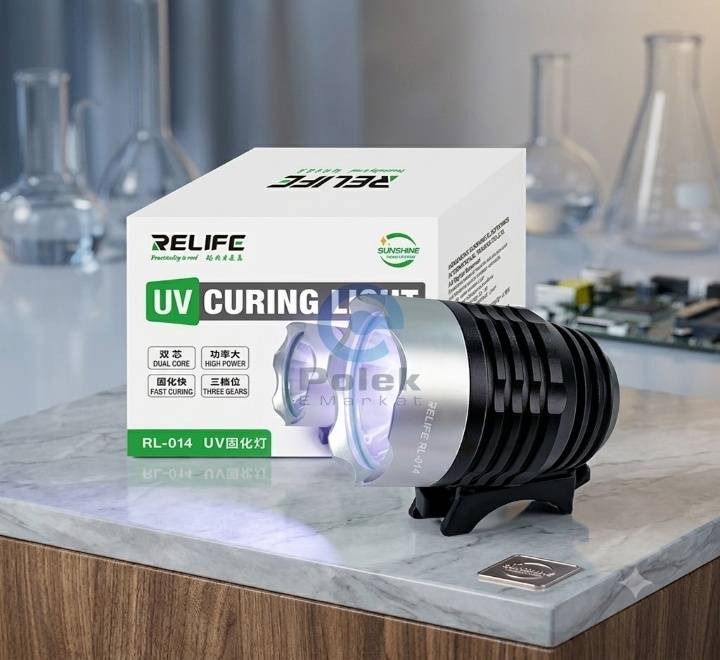

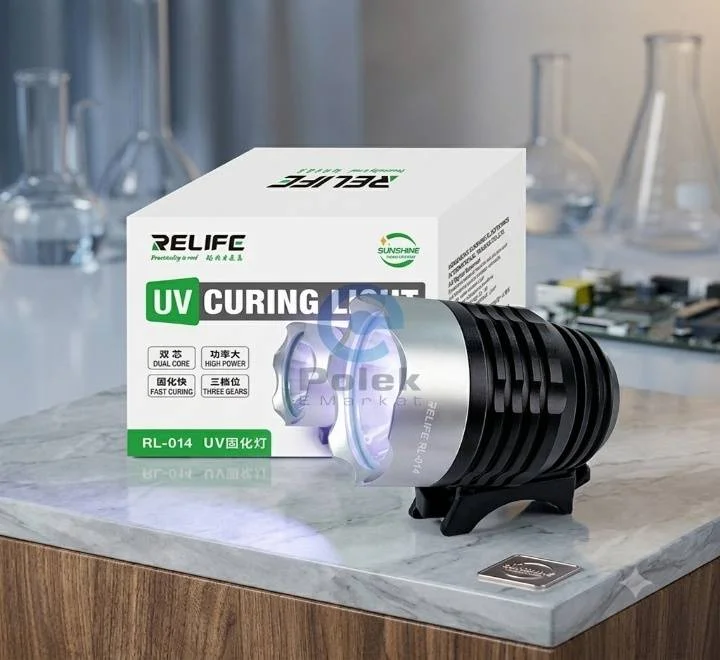

RELIFE RL-014
RELIFE RL-014 is a high-power, dual-core UV curing lamp primarily used by electronics technicians for smartphone motherboard repairs and PCB circuit board restoration. It utilizes targeted ultraviolet light to dry adhesives, resins, and protective coatings rapidly.
Core Technical Specifications
· Power Output: 5 Watts powered by dual imported T6 LED beads.
· Wavelength: 395nm band wavelength, optimized for industrial and electronic chemical compounds.
· Power Source: 5V USB interface, pulling a recommended current of 1400mA. It operates via standard power banks, wall adapters, or PC ports.
· Adjustable Intensity: Three gear settings featuring strong light (100%), weak light (60%), and a flashing mode (30%).
· Curing Speed: Achieves fast, base-up curing in roughly 10 seconds.
Primary Applications

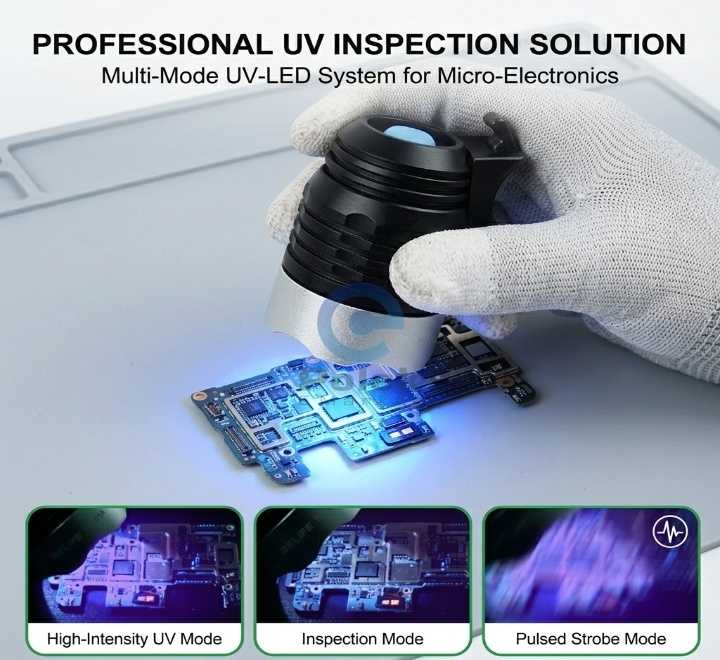

· Solder Mask Curing: Instantly dries photosensitive green/blue oil used to insulate jumper wires on scratched or repaired logic boards.
· Display Refurbishment: Cures Liquid Optically Clear Adhesives (LOCA) and shadowless glues during smartphone screen glass replacements.
· Component Stabilization: Hardens UV resin used to reinforce fragile micro-soldered flex cables or structural IC joints.
· Alternative Uses: Functions as an anti-counterfeit banknote verification light or a fluorescent leak detection tool.
Key Features
· Thermal Management: Built with an aluminum alloy grid shell that acts as a passive heatsink to prevent LED degradation during prolonged repair sessions.
· Optical Clarty: Equipped with gemstone-grade lenses and a multi-segment focusing ring to produce a tight, focused beam that limits light bleed.
· Mountable Design: Ships with heavy-duty rubber straps, allowing technicians to tie the lamp directly to microscope pillars or workstation mounts for hands-free operation.
