2UUL MS97

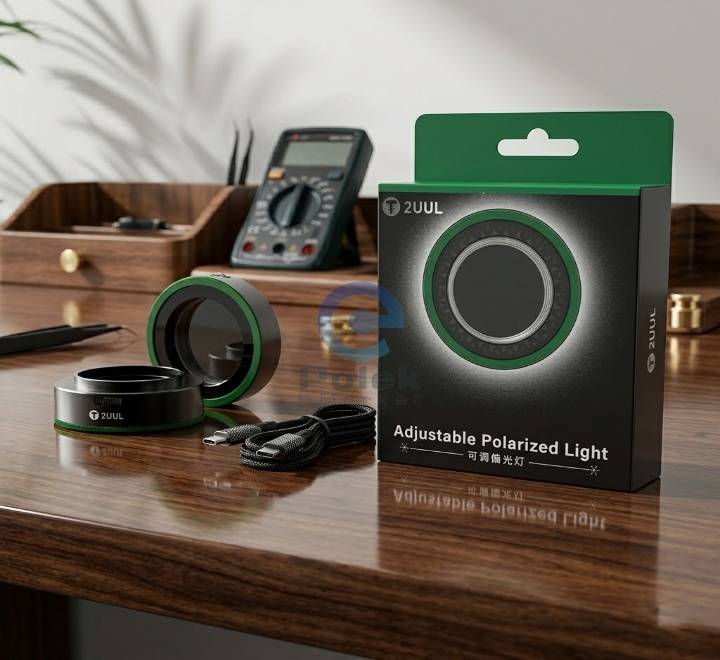

2UUL MS97 is an adjustable, polarized LED ring lamp explicitly engineered for stereo microscopes used in micro-soldering, PCB inspection, and mobile motherboard repairs. Its primary function is to eliminate harsh reflections and glare from shiny solder joints and metallic components, allowing technicians to see true colours and fine details without eye strain.

Core Technical Specifications

·         Illumination: 32 high-brightness, cool white (5600K) LEDs providing shadow-free, uniform light.

·         Power Input: 5V/2A via a universal USB connection, consuming a highly efficient 10W.

·         Physical Dimensions: Inner diameter of 47 mm, outer diameter of 67 mm, and a thickness of roughly 18 mm to 22 mm.

·         Construction: Durable, quick-cooling metal housing designed for rapid heat dissipation.

Key Features and Benefits

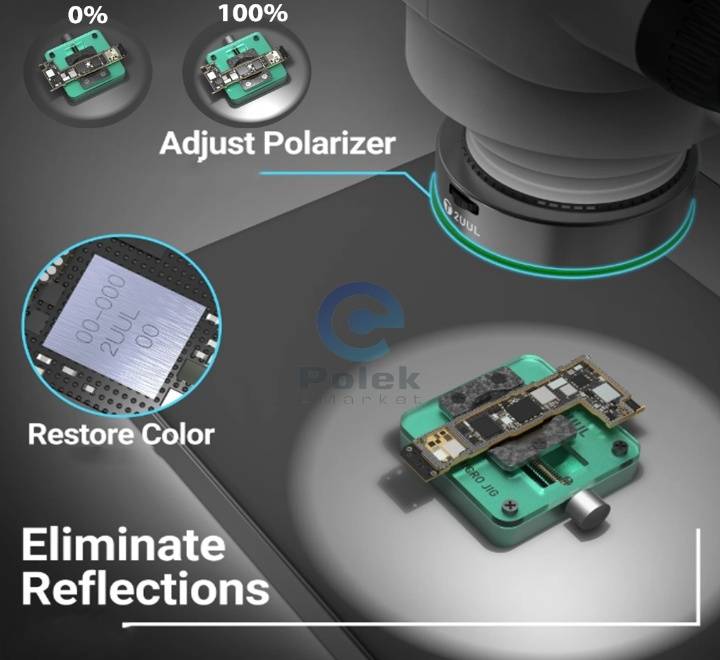

·         Glare Mitigation: Built-in adjustable polarizing filters allow you to rotate and dial out blinding reflections from glossy surfaces, screens, and wet solder flux.

·         Full Dimming Control: Smooth, adjustable brightness ranging from 0% to 100% to match varying workshop lighting conditions.

·         Workspace Protection: Features an integrated dust-proof, oil-proof, and anti-smoke optical glass lens cover to safeguard your microscope optics from destructive soldering fumes and flux splatter.

·         Universal Compatibility: Designed to attach natively onto the lens housing of most popular stereo microscope models used on modern repair benches.
