YAXUN YX-X5

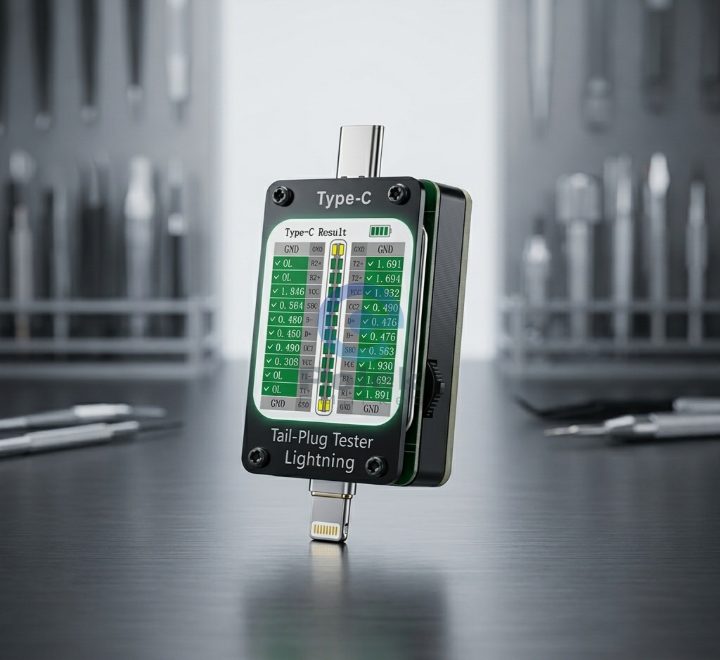

YAXUN YX-X5 is a compact tail-plug test board built for smartphone diagnostics. It is specifically engineered to quickly check charging ports and internal circuits without opening up the device.

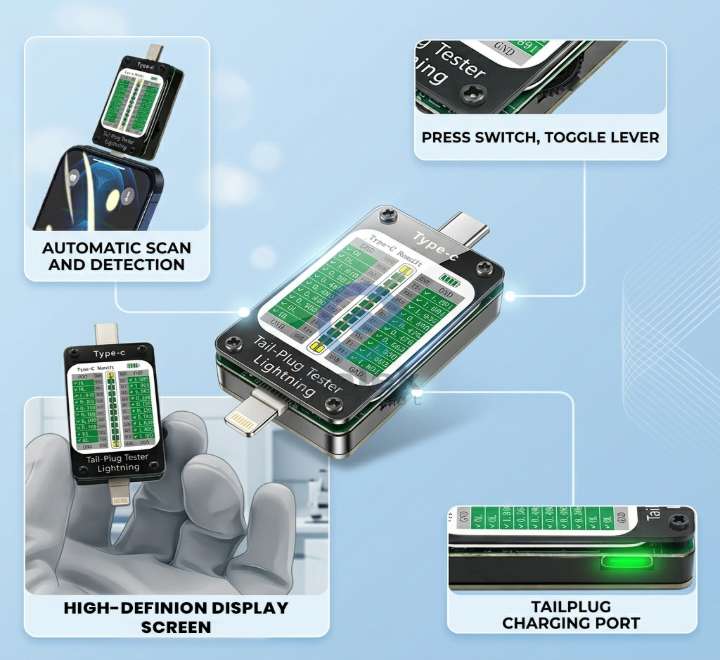

Core Functionality

·         Dual-Interface Compatibility: Built with dedicated connection layouts for both Type-C and iPhone Lightning charging assemblies.

·         No-Disassembly Diagnostics: Plugs directly into the phone's charging port to allow technicians to measure pins using a multimeter.

·         Component Testing: Simplifies checking battery lines, data lines (D+/D-), and power delivery rails for faults.
