Sunshine DT-9205E

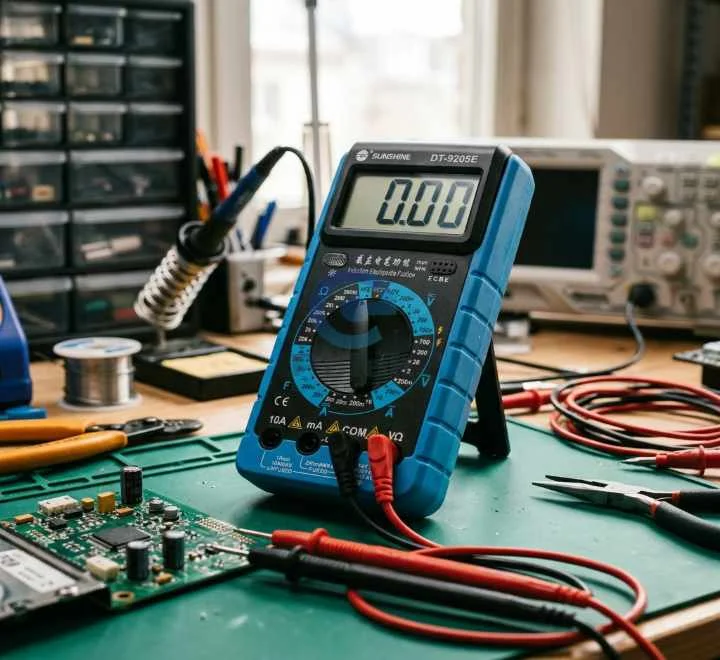

Sunshine DT-9205E is a highly popular, budget-friendly digital multimeter tailored primarily for mobile phone, laptop, and electronics PCB repair. It is well-regarded for its high-contrast, large adjustable LCD display (up to a 70-degree viewing angle) and integrated Non-Contact Voltage (NCV) induction feature.

Technical Specifications

·

·         DC Voltage: 200mV to 1000V

·         AC Voltage: 2V to 750V

·         DC/AC Current: 2mA to 20A

·         Resistance: 200Ω to 200MΩ

·         Capacitance: 20nF to 200µF

·         Maximum Display: 1999 counts (3.5 digits)

·         Power Supply: 9V Battery (6F22)

Key Features

·

·         Adjustable Large Screen: The 70x40mm LCD screen flips up so you can comfortably read measurements on a busy workbench.

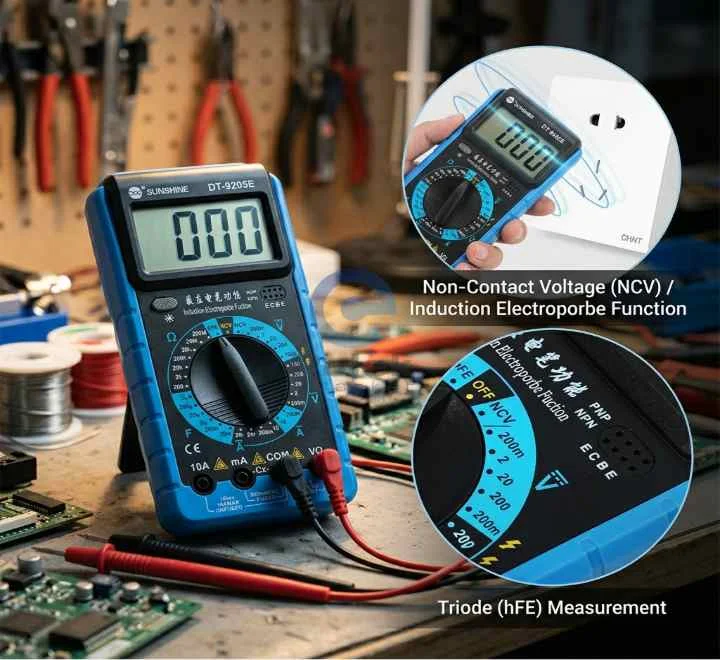

·         Non-Contact Voltage (NCV): Functions as an induction pen, emitting a rapid beep to safely detect the presence of AC voltage without direct wire contact.

·         Auto Power Off: Automatically shuts down after roughly 25 minutes of inactivity to preserve the 9V battery.

·         Circuit Protection: Encased in a shockproof rubber holster with built-in overload/fuse protection.

·         Additional Diagnostics: Includes a continuity buzzer with visual LED indicators, a diode test, and a transistor test slot.
